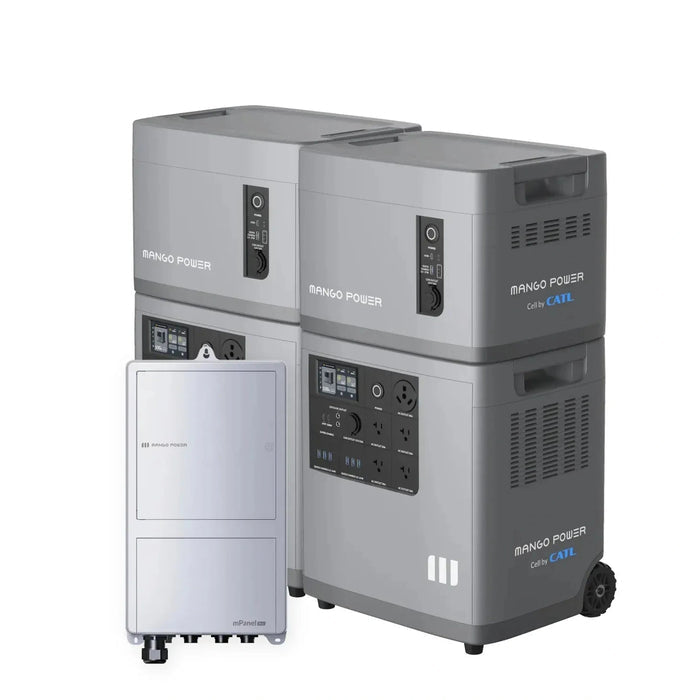

2× Mango Power E + 2× E Extra Battery + mPanel Pro is a complete whole-home backup energy solution designed to provide reliable, uninterrupted power for homes during grid interruptions. This configuration includes two Mango Power E portable power stations, two E Extra Batteries, and the mPanel Pro smart transfer panel, delivering a combined 14.1kWh battery capacity and 6,000W continuous AC output with 120V/240V split-phase power. It is ideal for powering essential household circuits, large appliances, and critical equipment while maintaining seamless operation during power interruptions.

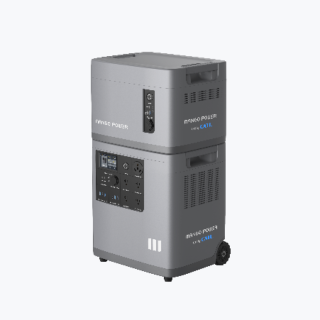

Each Mango Power E is paired with an Extra Battery to double its capacity from 3.53kWh to 7.06kWh. When the two expanded systems are connected through the mPanel Pro, they can automatically supply backup power to selected home circuits, allowing refrigerators, lighting, internet equipment, HVAC systems, well pumps, and other household appliances to continue operating when the utility grid goes down.

The system uses durable CATL LiFePO₄ battery cells rated for up to 6,000 charge cycles, supports ultra-fast AC charging, accepts up to 2,000W solar input per main unit, and can be monitored and managed remotely through the Mango Power mobile app via Wi-Fi and Bluetooth.

Highlights:

• 3.5-14kWh Capacity / 3-6kW AC Output

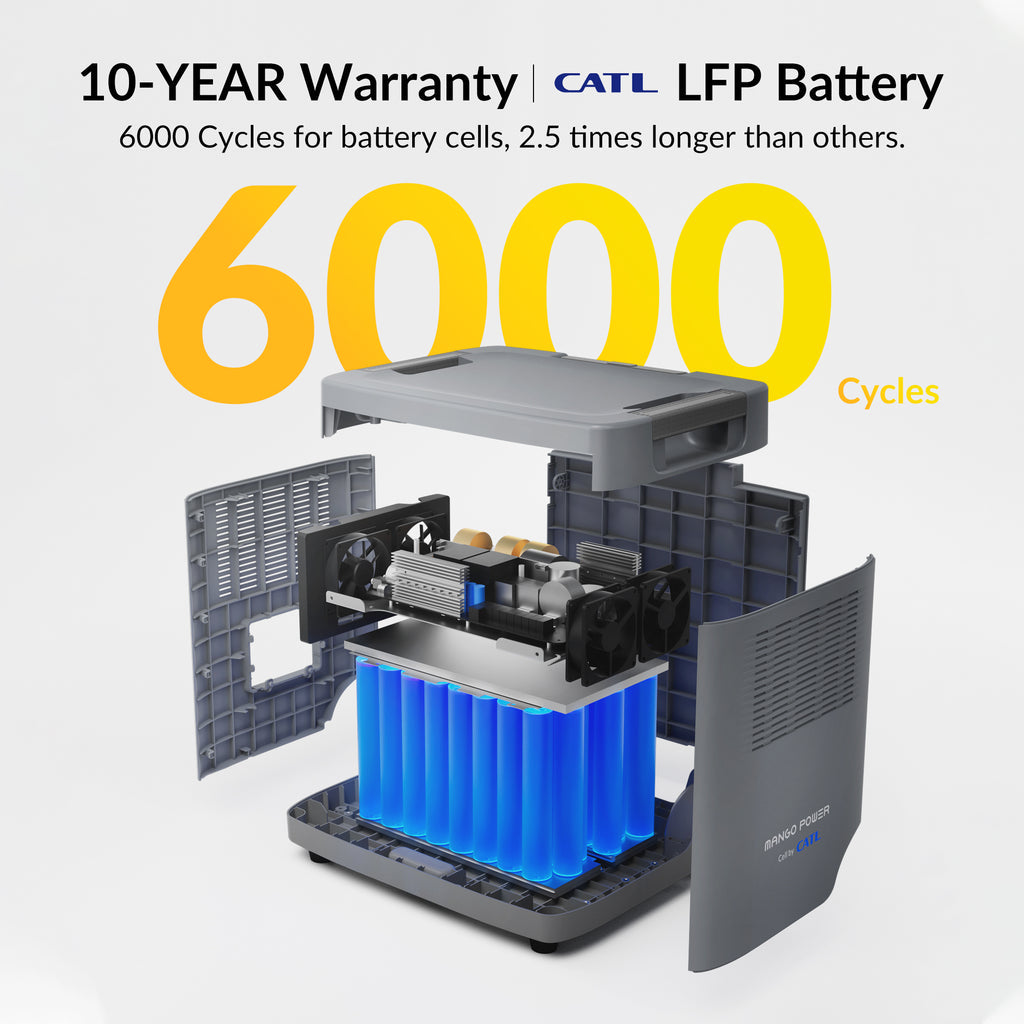

• CATL LFP Battery with 10-Year Warranty
• 6,000 Cycles / Over 20 Years Lifespan

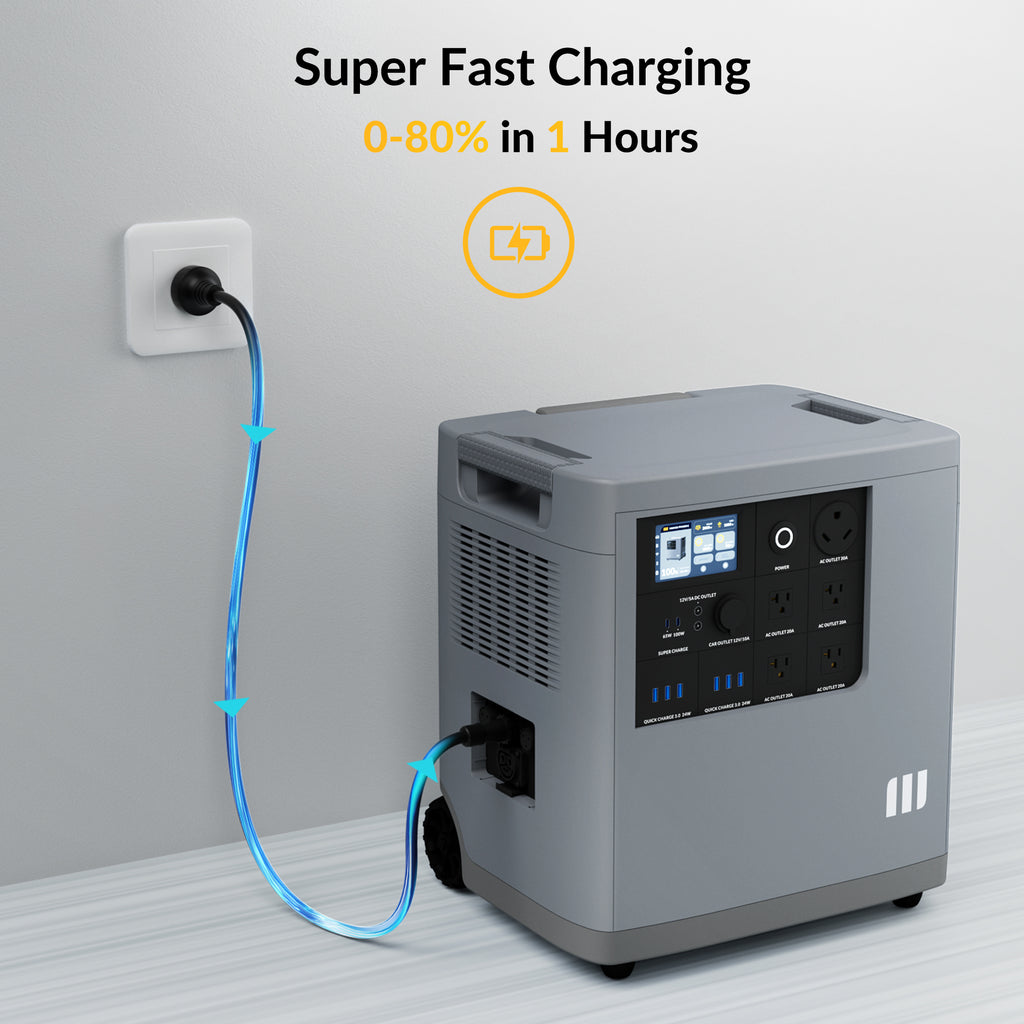

• Fast Charge: 1.5 Hours to Full Charge

Specifications:

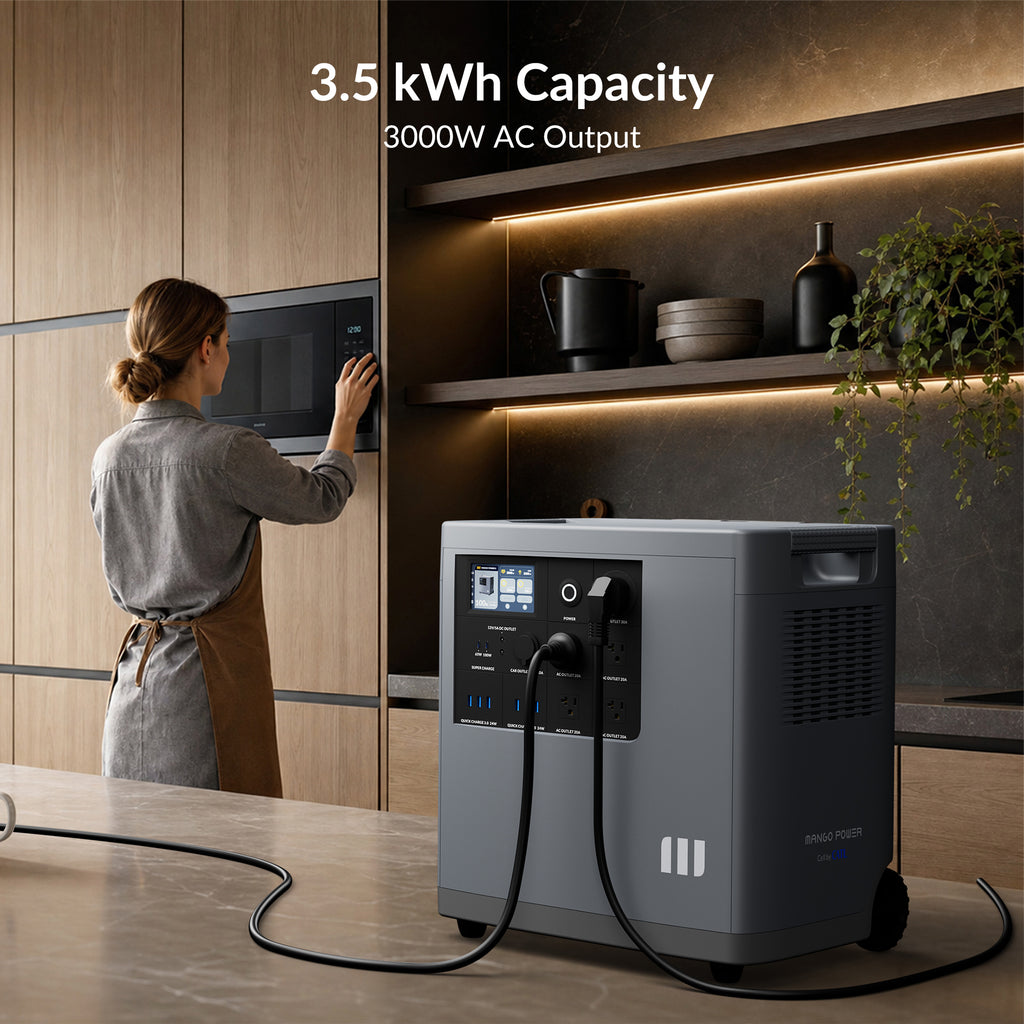

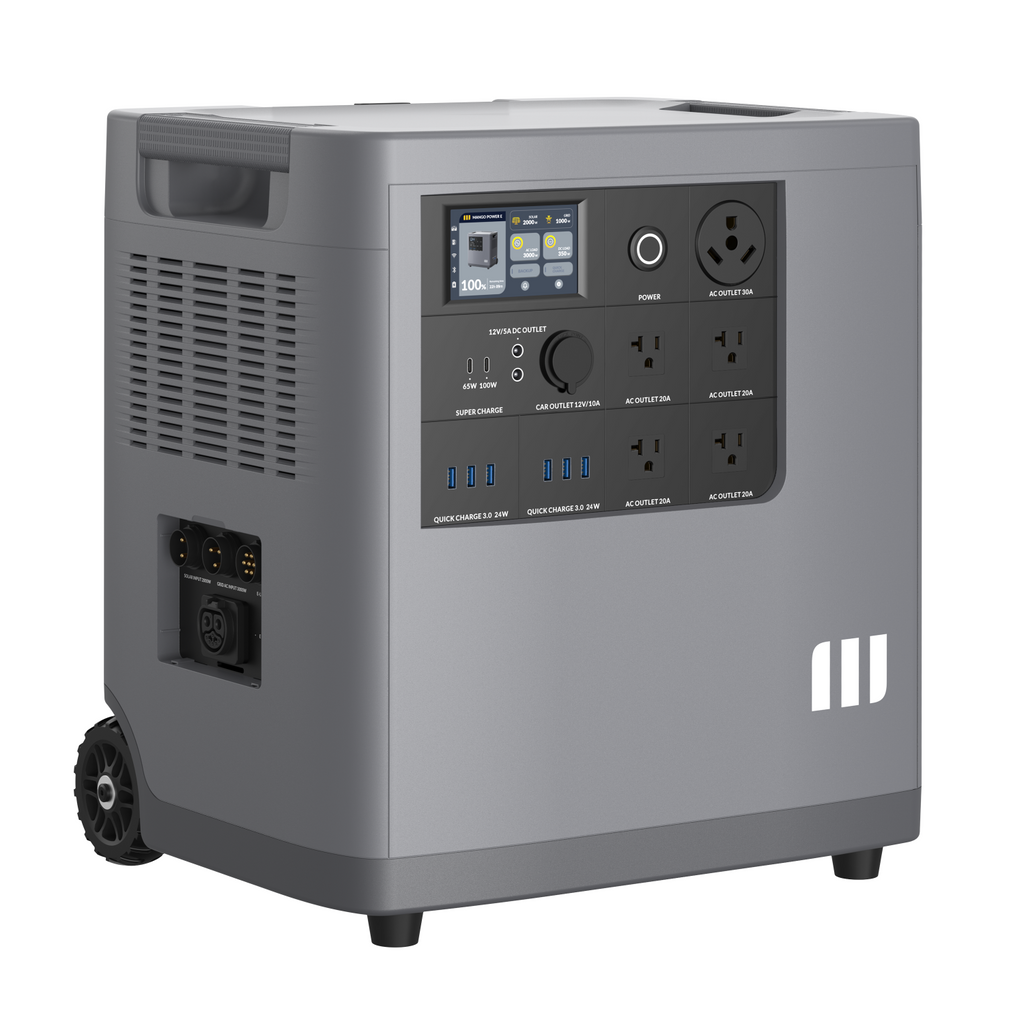

MANGO POWER E

Capacity: 3533Wh

Solar Charging Input: Max 2000W (60V-150V)

AC Output: 4 x 20A, 3000W total

EV Charging Spot: Adapter needed

USB-A Output: 6 x QC 3.0 24W

Generator: Support

USB-C Output: 1 x PD 65W + 1 x PD 100W

Battery Chemistry: LFP

Car Power Output: 12V / 10A

Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)

DC5521 Output: 2x 12V / 5A

Connection: Wi-Fi. Bluetooth

AC RV Port: 30A

Net Weight: 100.1 lbs / 45.4kg

AC Charging Input: Max 3000W

Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

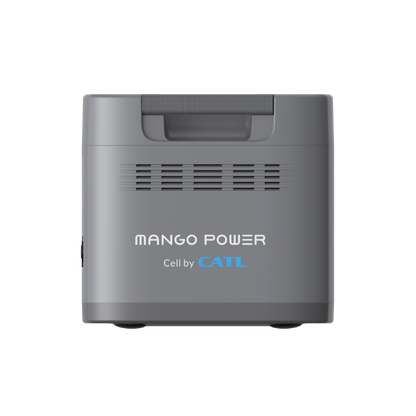

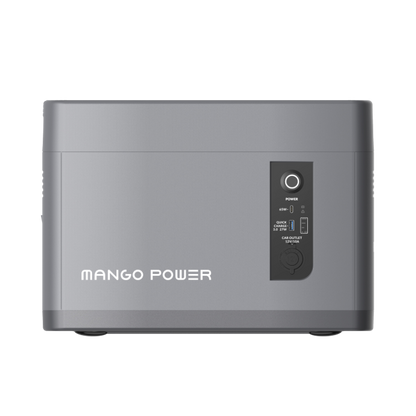

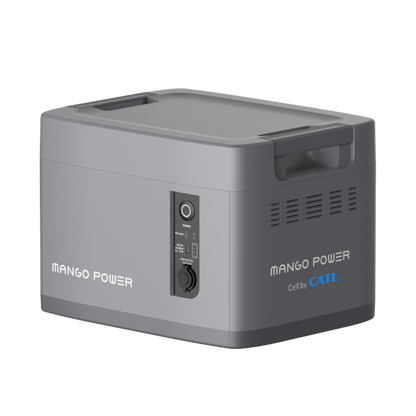

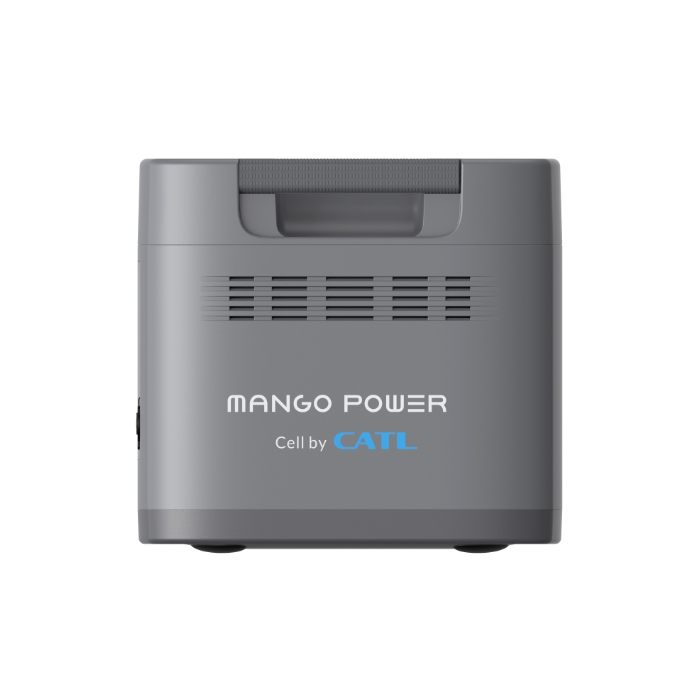

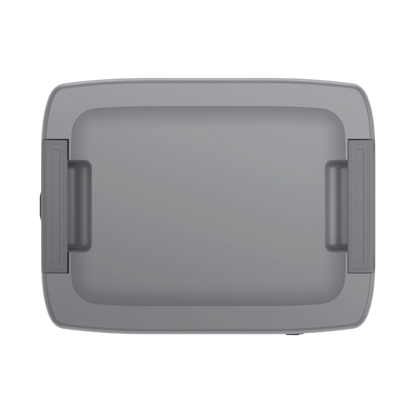

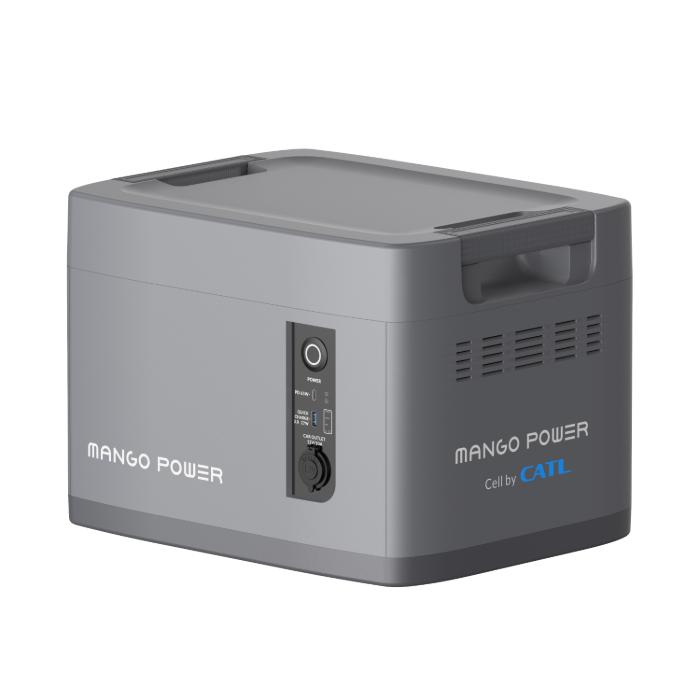

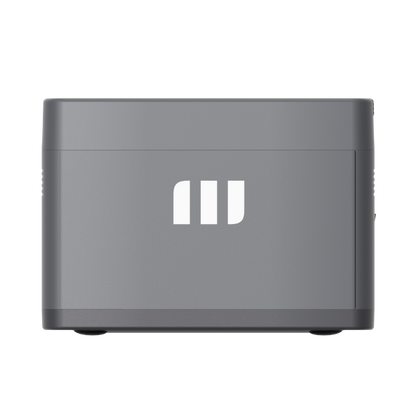

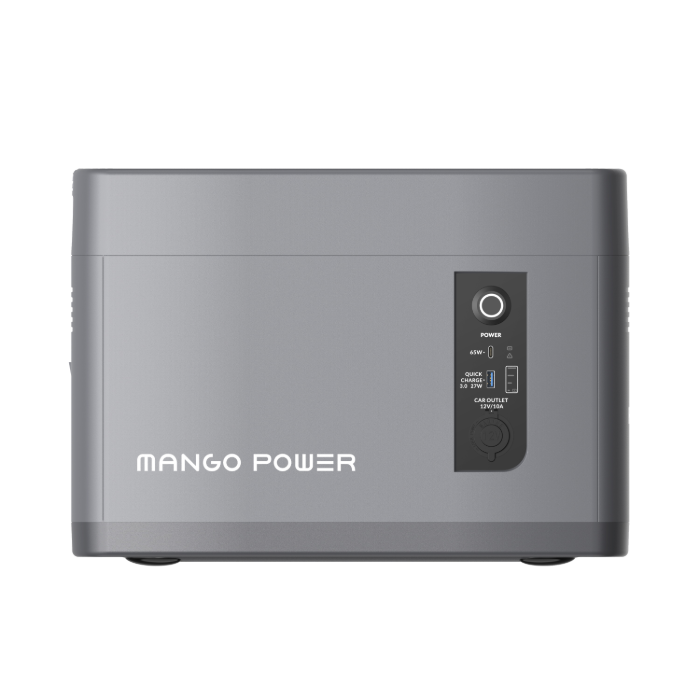

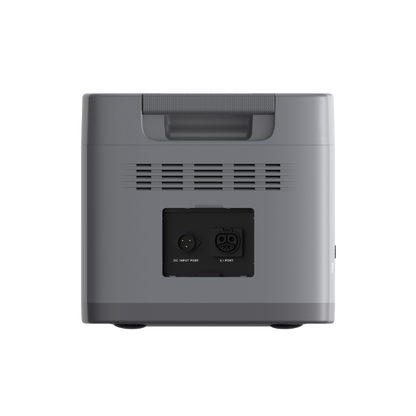

E Expansion Battery

Battery Capacity: 3,533Wh (3.53kWh)

Battery Chemistry: CATL LiFePO₄ (LFP)

Cycle Life: 6,000 cycles to 70% capacity (@25°C, ±0.5C)

Expandable Capacity: Increases a Mango Power E from 3.53kWh to 7.06kWh

Compatibility: Mango Power E Portable Power Station

Battery Management System (BMS): Over-voltage, overload, over-temperature, short-circuit, low-temperature, low-voltage, and overcurrent protection

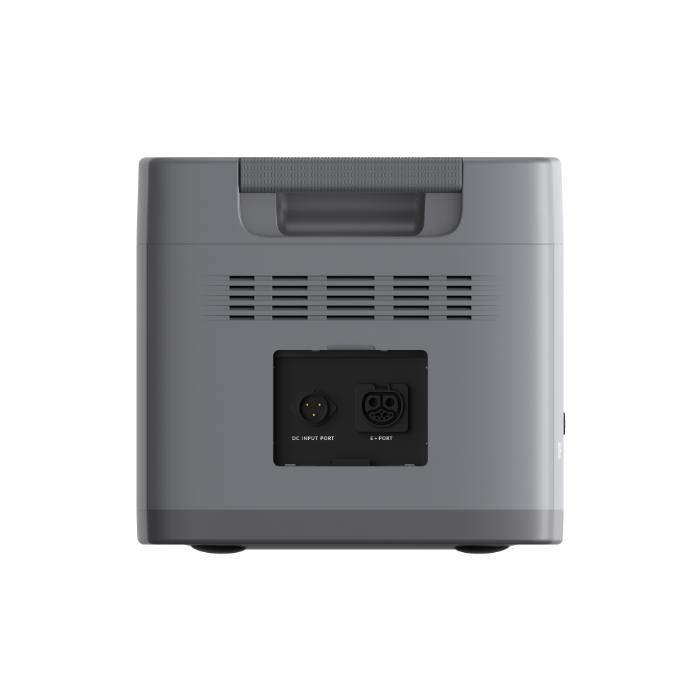

Connection Method: Direct plug-and-play connection using the included E+ Connection Cable

Installation: Stackable design that attaches directly beneath the Mango Power E

Operating Temperature: Designed for the same operating environment as the Mango Power E system

Warranty: 10-year CATL battery cell warranty

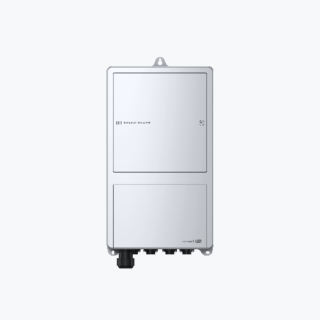

mPANEL PRO

Function: Smart transfer panel for home backup power

Compatible Devices: Mango Power E, Mango Power Union, Power Home, Power Move

Dimensions: 554 × 280 × 108 mm (21.8 × 11.0 × 4.3 in)

Mains Input Voltage: 120V / 240V AC

Maximum Mains Input Current: 50A

Output Ports: 2 × 30A outputs to compatible Mango Power units

Backup Input Ports: 2 × 30A backup input ports

Load Output Ports: 4 × 15A dedicated backup circuits

Operating Temperature: -10°C to 45°C (14°F to 113°F)

Transfer Method: Manual rotary switches for fast switching between grid and backup power

Supported Circuits: Up to 4 essential household circuits

Installation: Wall-mounted near the home's electrical panel

Application: Home backup, backup power, and portable power integration

What's in the Box:

2 x Mango Power E

1 x AC Charging Cable

1 x Solar Input Cable

1 x Quick Guide

1 x Warranty Card

1 x Mango Power E Battery

1 x E+ Connection Cable

1 x User Manual

1 x Warranty Card

1 x mPanel Pro

1 x User Manual

1 x Warranty Card
