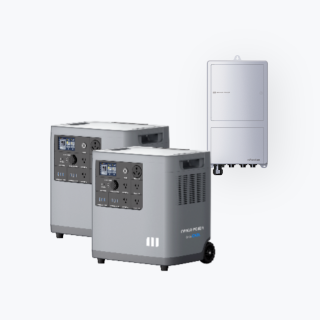

Mango Power E + mPanel Pro is a smart home backup power solution that combines the high-capacity Mango Power E portable power station with the mPanel Pro smart transfer panel to provide seamless backup power for essential household circuits during grid interruptions. Designed for residential use, this system automatically switches selected home circuits to battery power when the grid fails, keeping lights, refrigerators, internet equipment, sensitive electronics, and other critical appliances running without interruption.

The system starts with a 3,533Wh LiFePO₄ battery and 3,000W pure sine wave inverter, and can be expanded up to 14kWh of storage and 6,000W output by connecting additional Mango Power E units and expansion batteries. When paired with the mPanel Pro, the system supports 120V/240V split-phase output, allowing it to power larger household appliances such as well pumps, dryers, water heaters, and HVAC equipment.

Featuring CATL LFP battery technology with up to 6,000 charge cycles, ultra-fast AC charging in as little as 1.5 hours, and support for up to 2,000W solar input, the Mango Power E + mPanel Pro offers a reliable, long-lasting, and eco-friendly alternative to traditional fuel-powered generators. Wi-Fi and Bluetooth connectivity enable real-time monitoring and control through the Mango Power mobile app, giving users complete visibility over energy usage and backup performance.

Mango Power E uses the same ultra-durable LFP battery cells as the world's best EVs. These cells charge faster, last longer, and are more reliable than other traditional NCA/NCM battery cells. Even with up to five years' continuous use, charging, discharging, and recharging constantly, the Power E's best-in-class battery cells will still perform as well as they did when brand new.

Highlights:

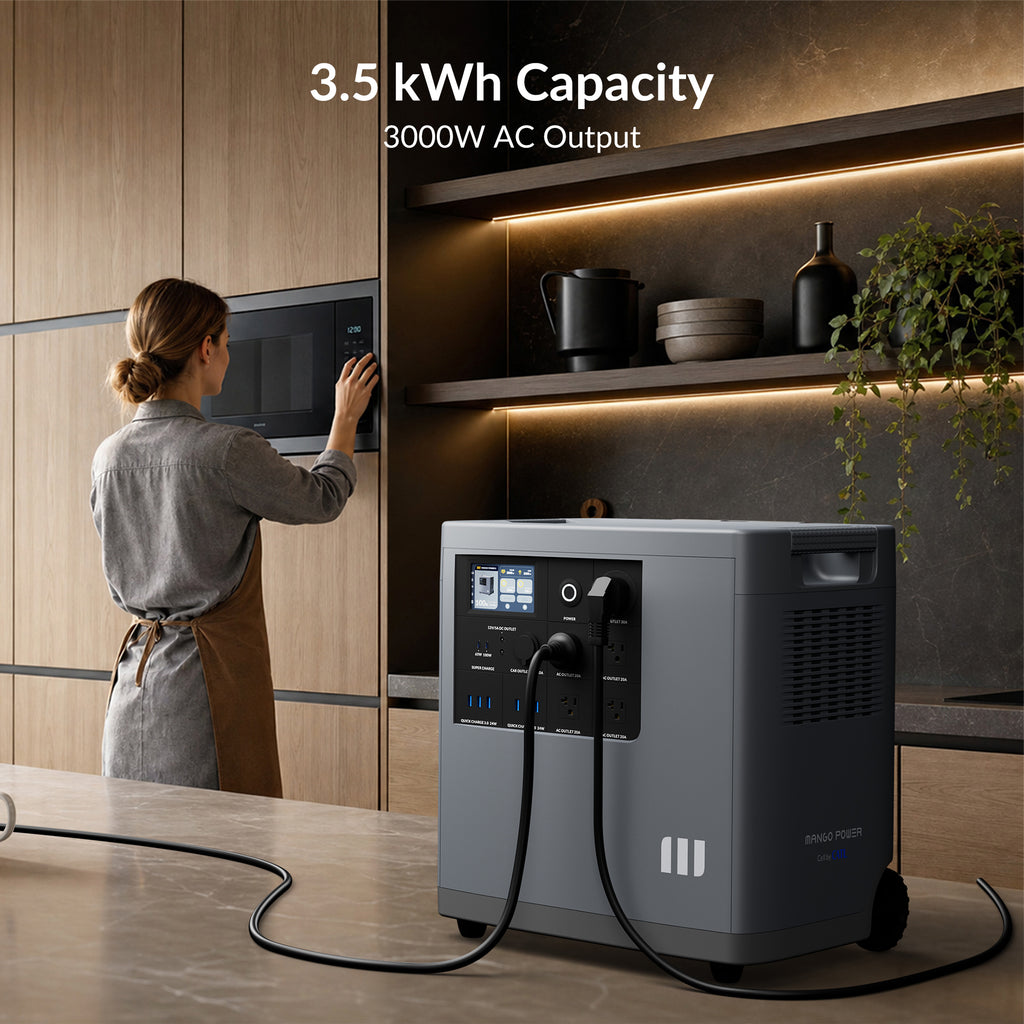

• 3.5-14kWh Capacity / 3-6kW AC Output

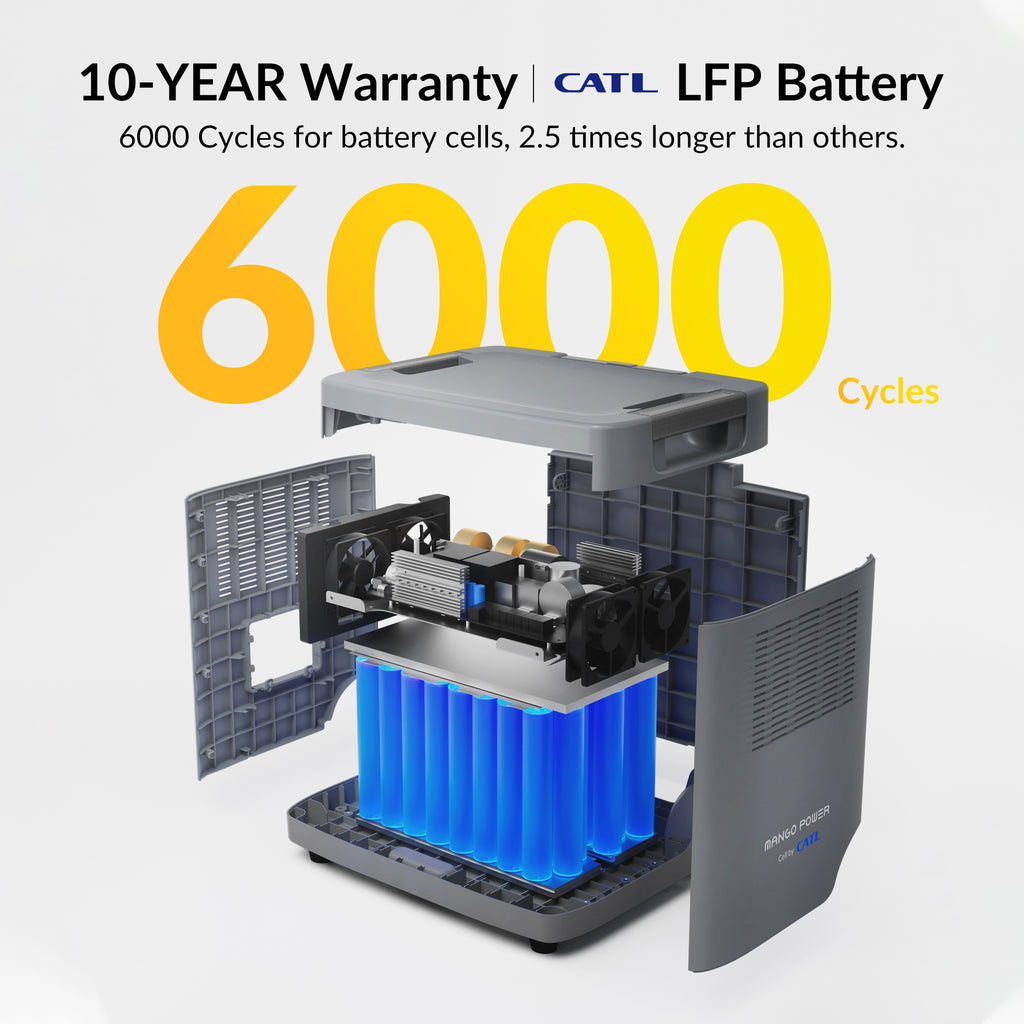

• CATL LFP Battery with 10-Year Warranty
• 6,000 Cycles / Over 20 Years Lifespan

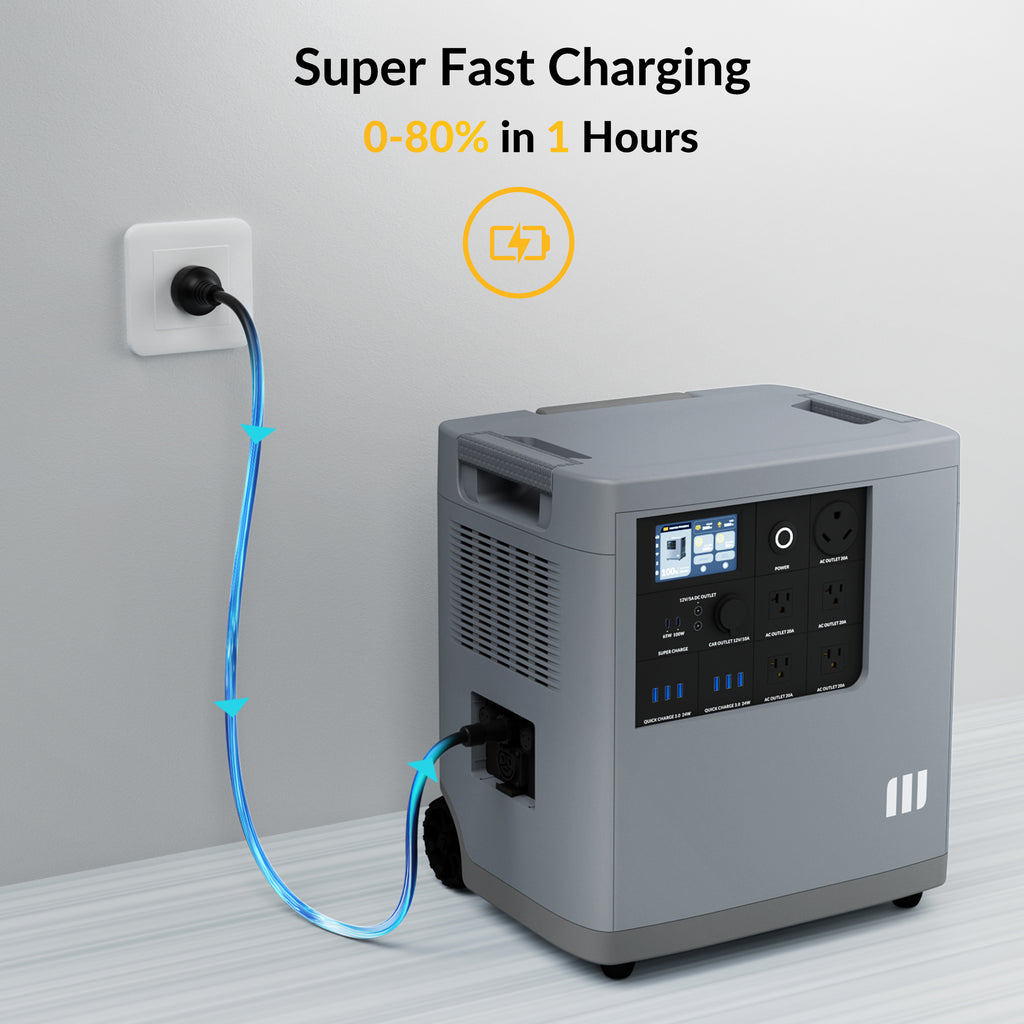

• Fast Charge: 1.5 Hours to Full Charge

Specifications:

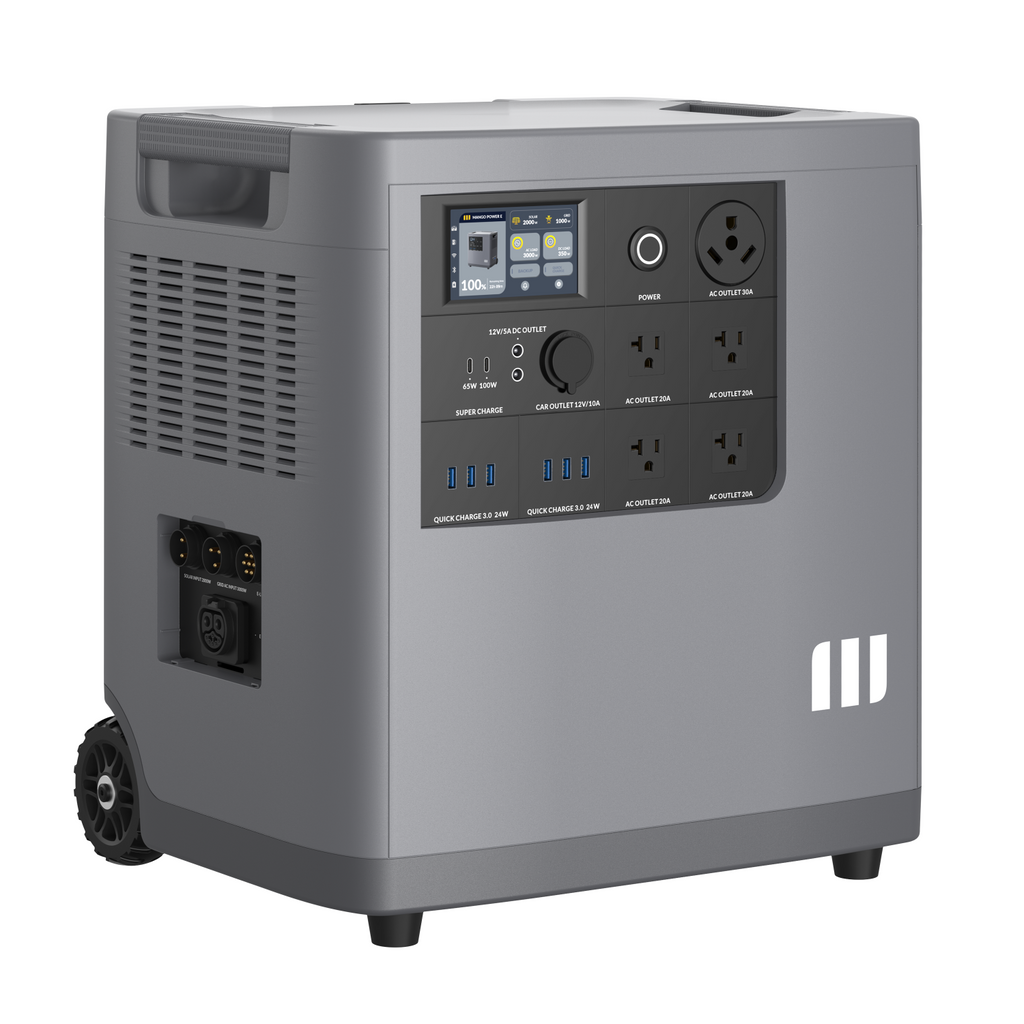

MANGO POWER E

Capacity: 3533Wh

Solar Charging Input: Max 2000W (60V-150V)

AC Output: 4 x 20A, 3000W total

EV Charging Spot: Adapter needed

USB-A Output: 6 x QC 3.0 24W

Generator: Support

USB-C Output: 1 x PD 65W + 1 x PD 100W

Battery Chemistry: LFP

Car Power Output: 12V / 10A

Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)

DC5521 Output: 2x 12V / 5A

Connection: Wi-Fi. Bluetooth

AC RV Port: 30A

Net Weight: 100.1 lbs / 45.4kg

AC Charging Input: Max 3000W

Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

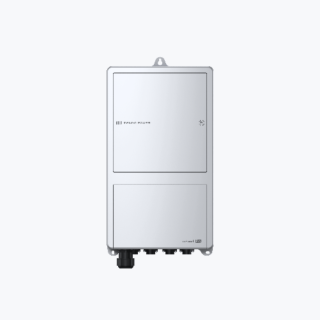

mPANEL PRO

Function: Smart transfer panel for home backup power

Compatible Devices: Mango Power E, Mango Power Union, Power Home, Power Move

Dimensions: 554 × 280 × 108 mm (21.8 × 11.0 × 4.3 in)

Mains Input Voltage: 120V / 240V AC

Maximum Mains Input Current: 50A

Output Ports: 2 × 30A outputs to compatible Mango Power units

Backup Input Ports: 2 × 30A backup input ports

Load Output Ports: 4 × 15A dedicated backup circuits

Operating Temperature: -10°C to 45°C (14°F to 113°F)

Transfer Method: Manual rotary switches for fast switching between grid and backup power

Supported Circuits: Up to 4 essential household circuits

Installation: Wall-mounted near the home's electrical panel

Application: Home backup, backup power, and portable power integration

What's in the Box:

2 x Mango Power E

1 x AC Charging Cable

1 x Solar Input Cable

1 x Quick Guide

1 x Warranty Card

1 x mPanel Pro

1 x User Manual

1 x Warranty Card
