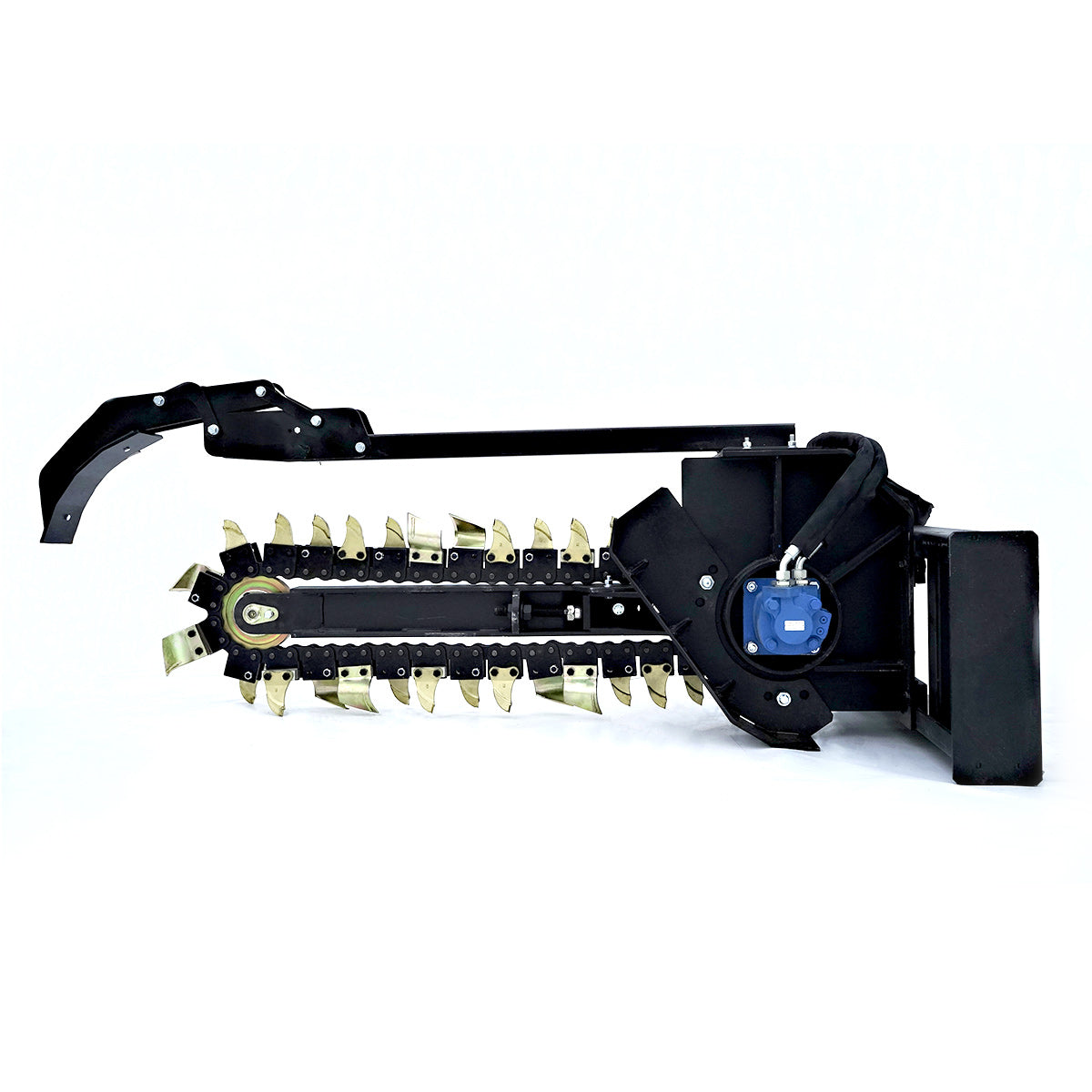

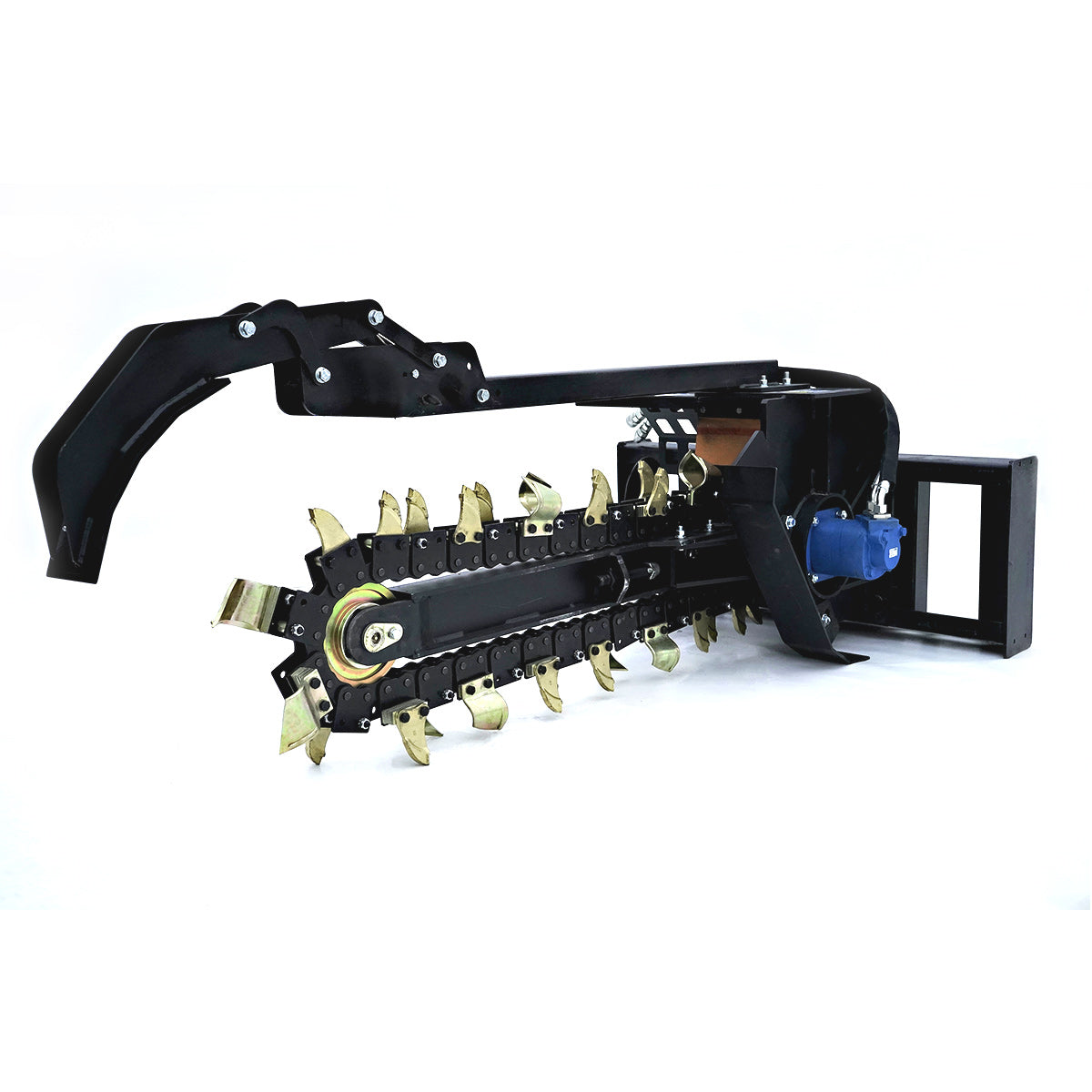

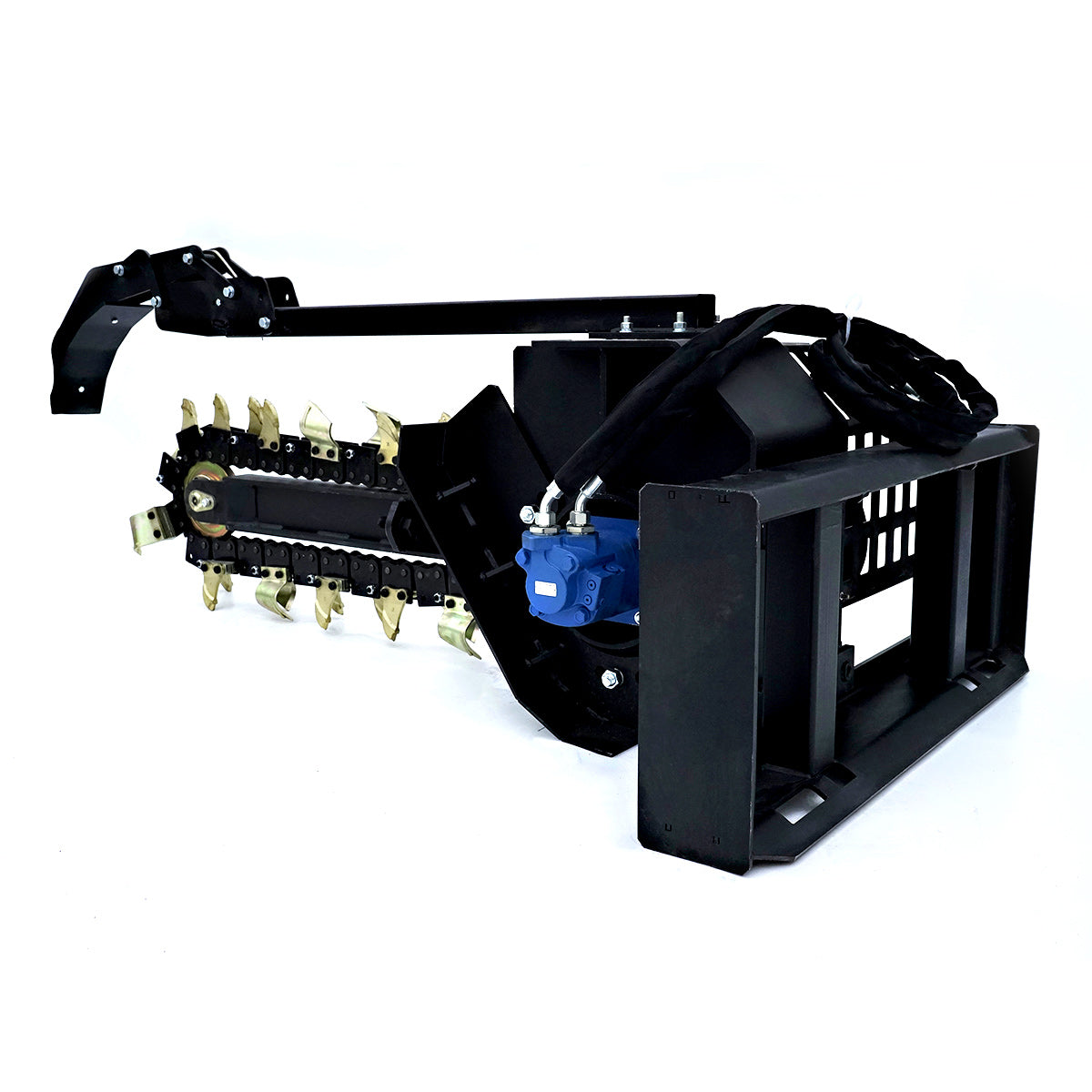

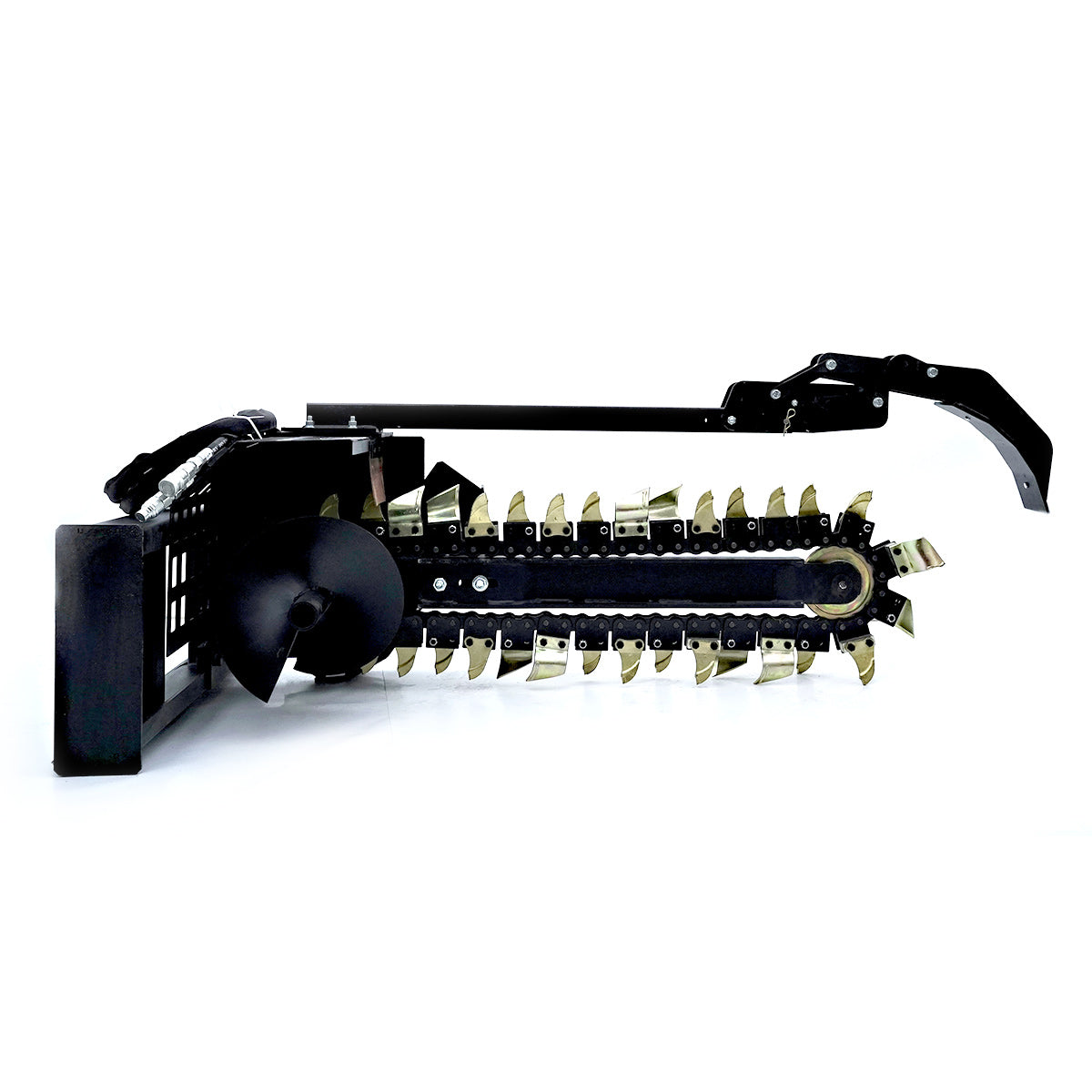

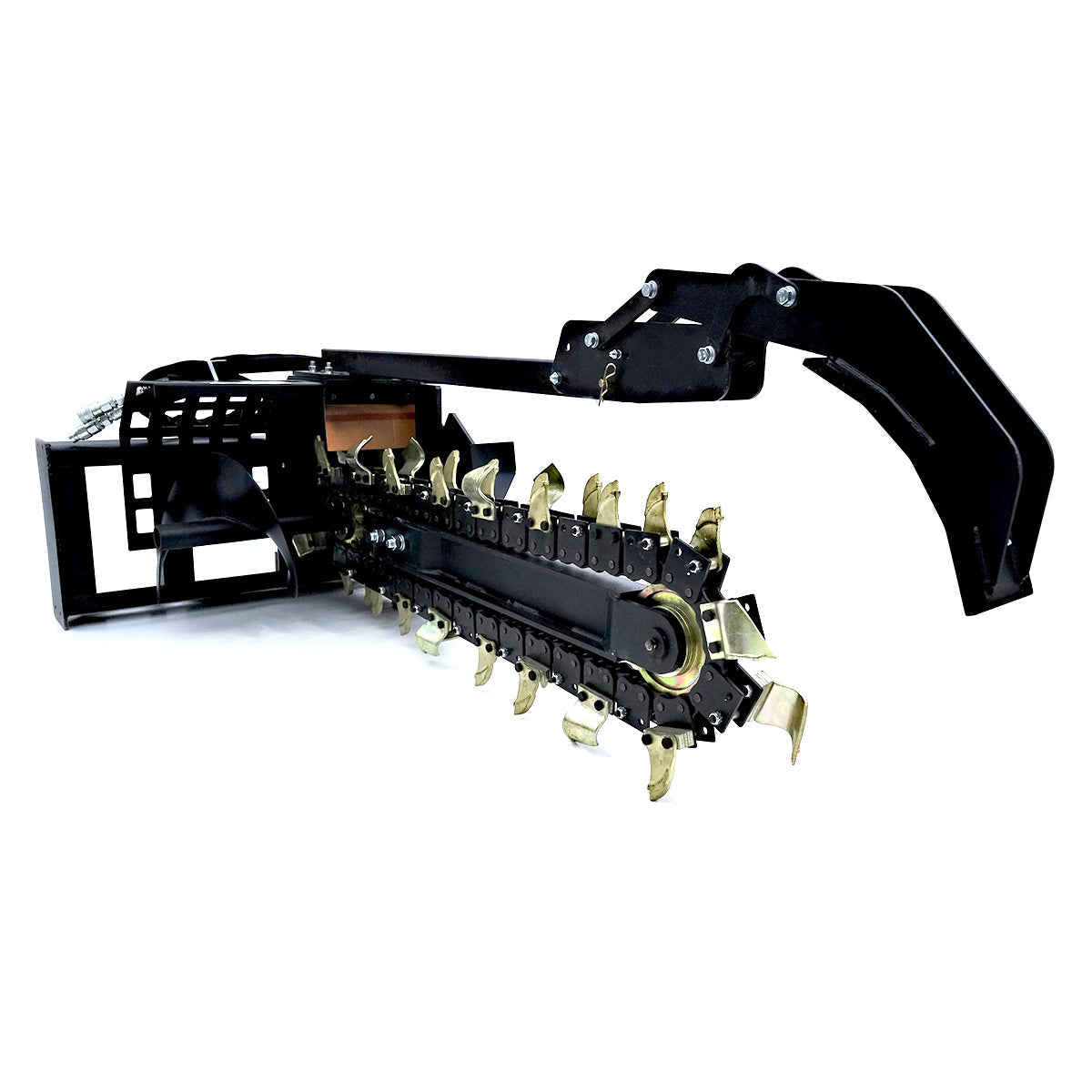

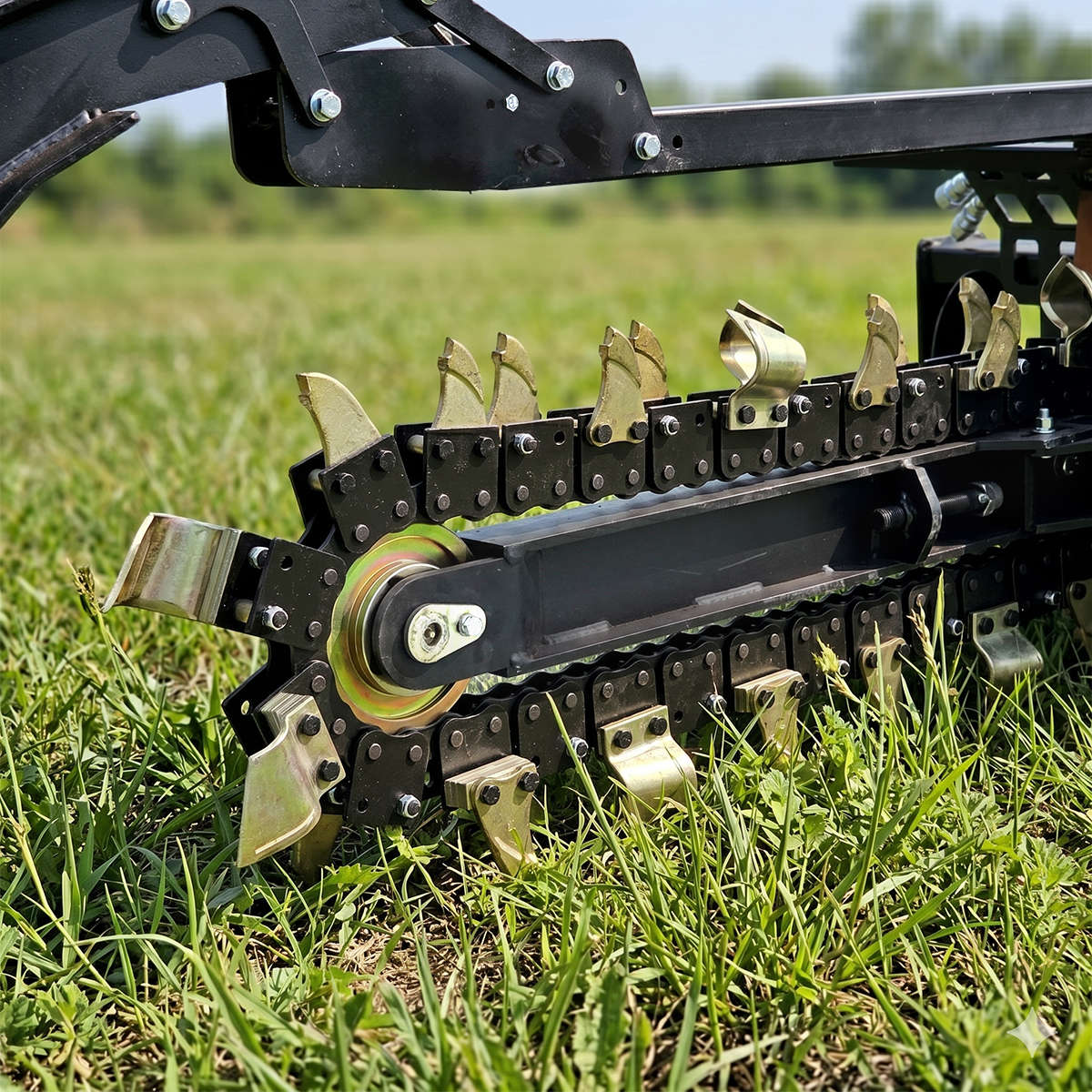

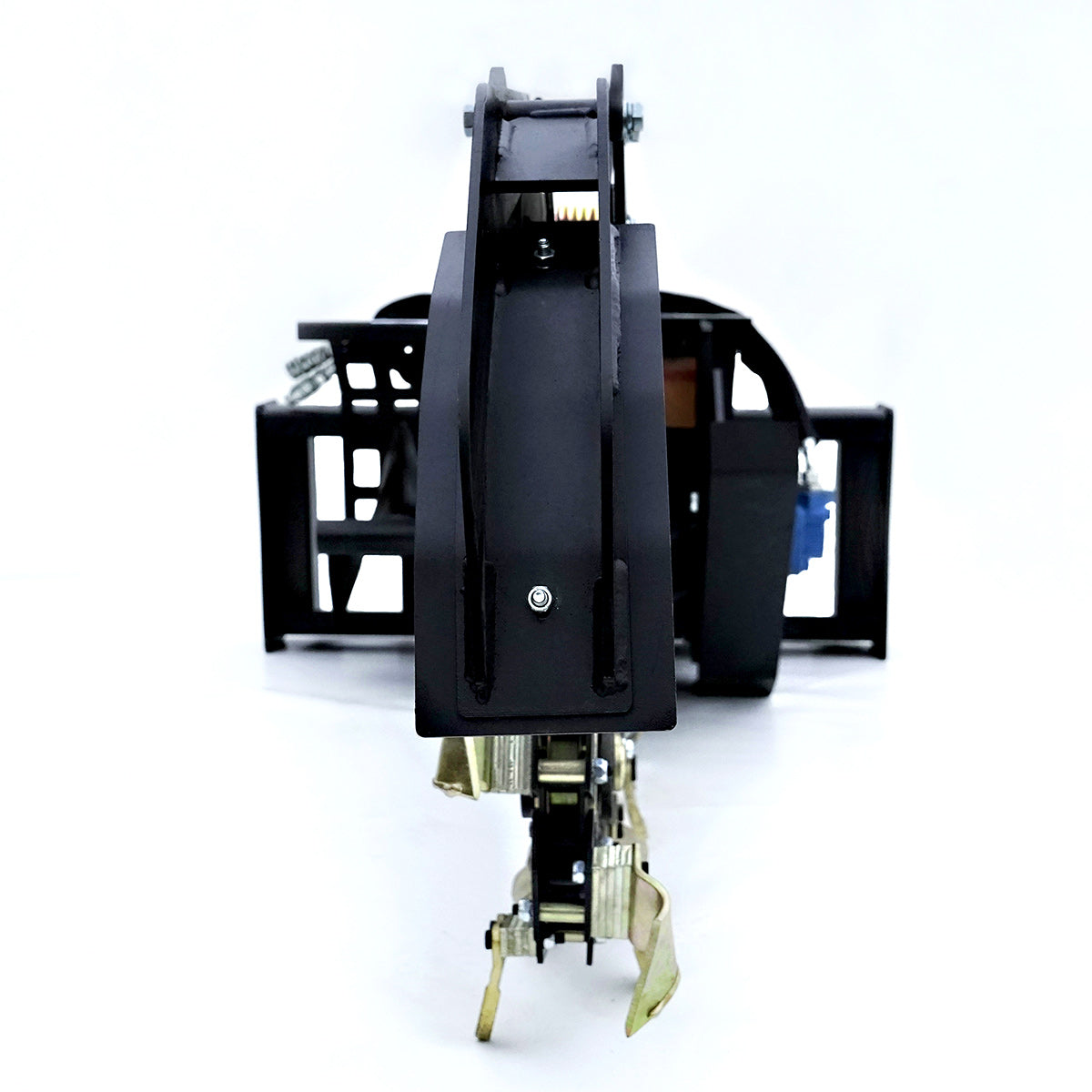

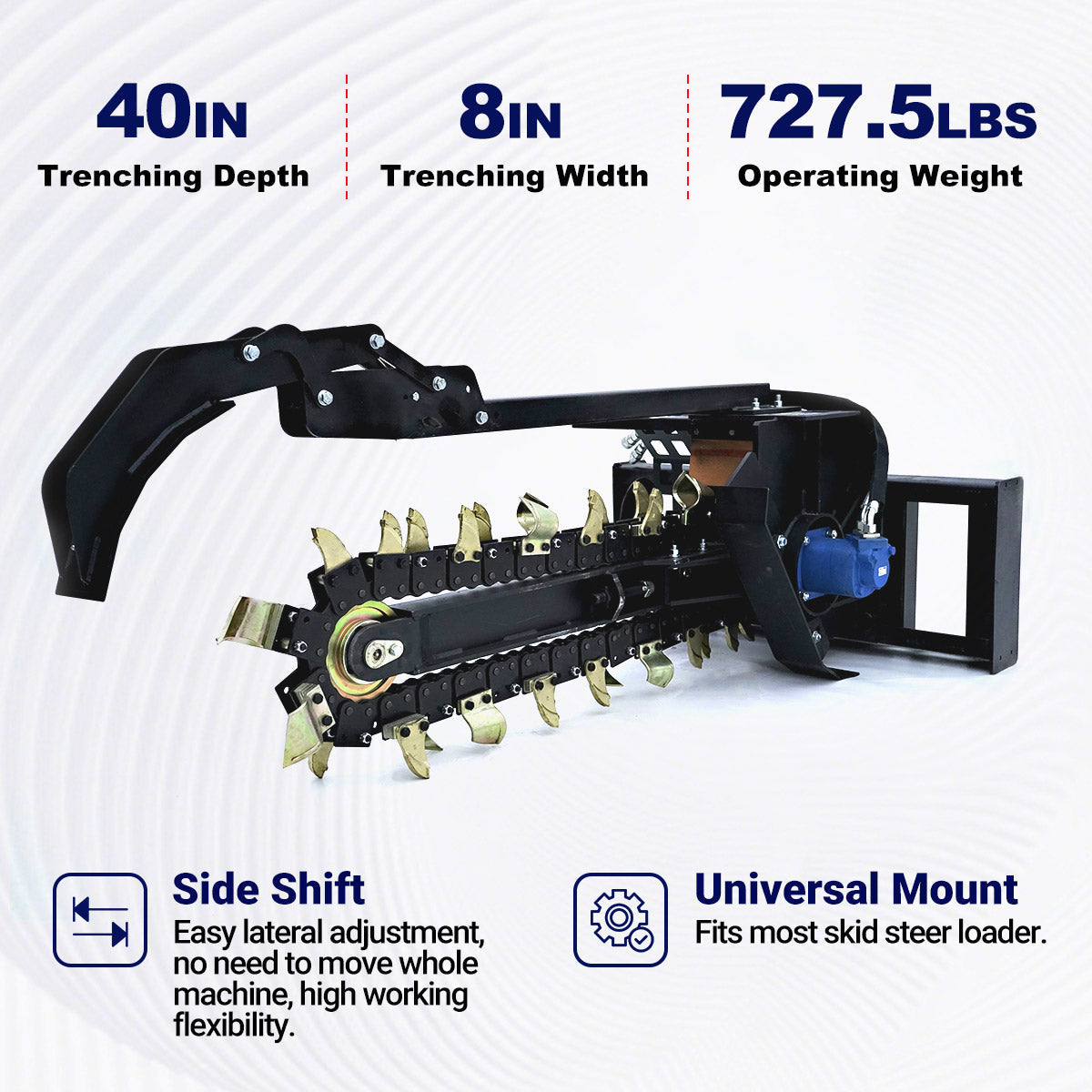

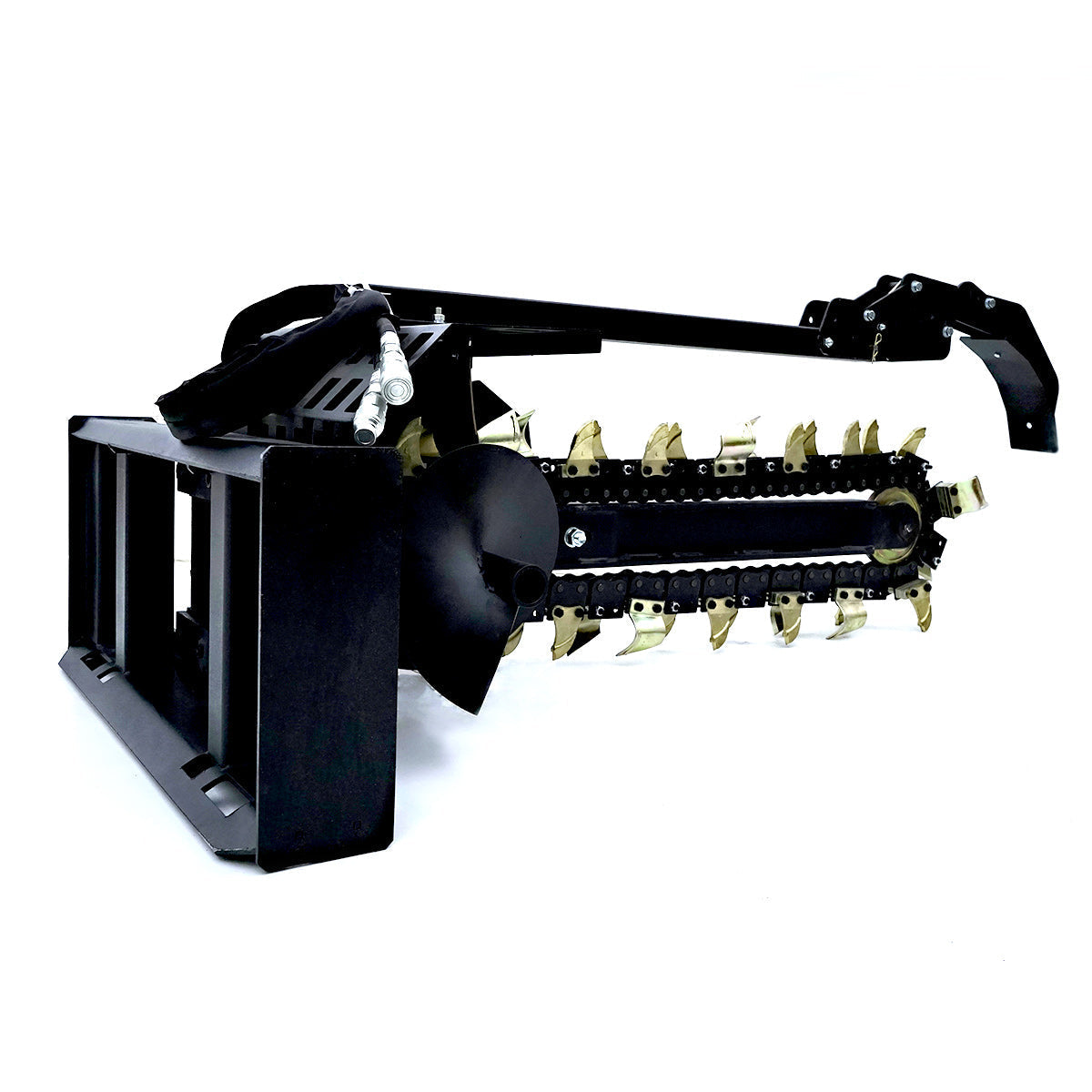

Greatbear 40" Skid Steer Trencher

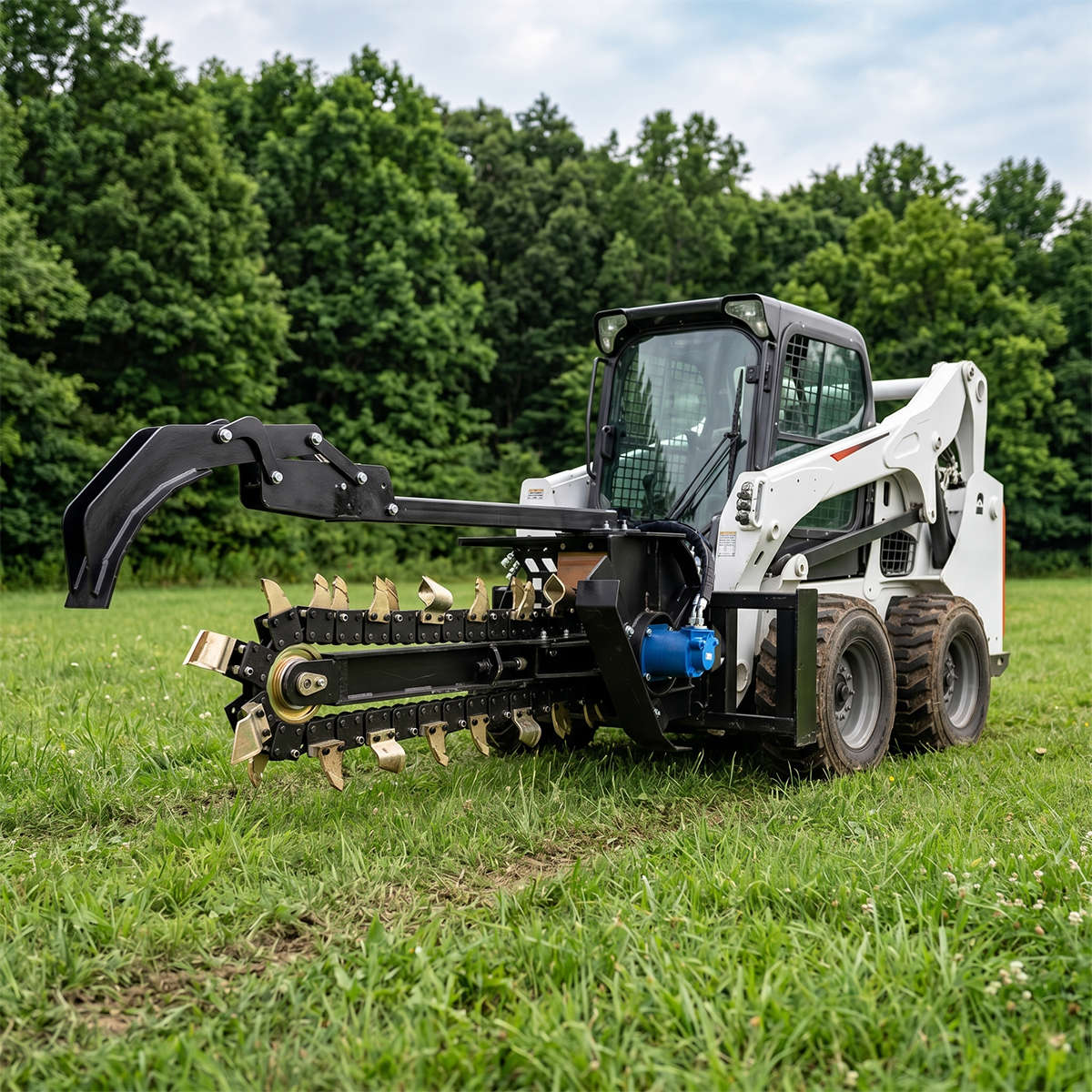

When it comes to construction worksite, a skid steer is a necessity, and when it’s for laying pipes and electrical cables, a skid steer trencher makes it easier. Greatbear skid steer trencher, as a piece of construction equipment, is designed to dig trenches for installing drainage and trench warfare. Greatbear skid steer trenchers come in different sizes and meet your different required digging width and depth, and the hardness of the surface to be cut.

User Manual

Specifications

For Model 1000/200:

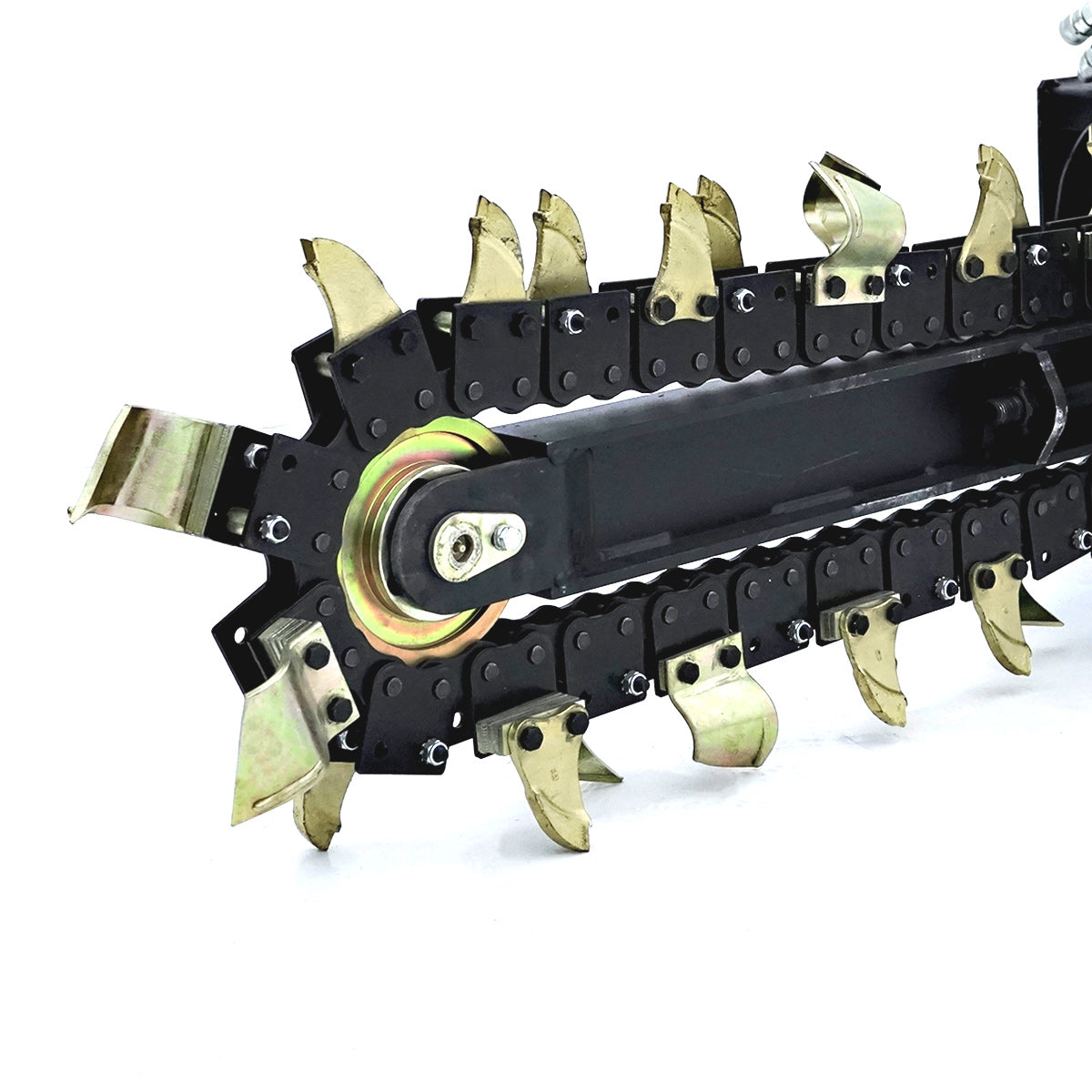

• Teeth: 20 Scorpion, 12 Double Cups
• Power Requirement: 45-75 HP
• Oil Pressure Range: 160-210 bar
• Flow Rate: 13-24 GPM

The max power is 19.60 Kilowatts. If the soil has light rock content, it still works. Can work in frost soil. The chainsaw teeth can be knocked off when hitting rocks. If the land is like the picture attached shows, Greatbear Skid Steer Trencher is not the applied.

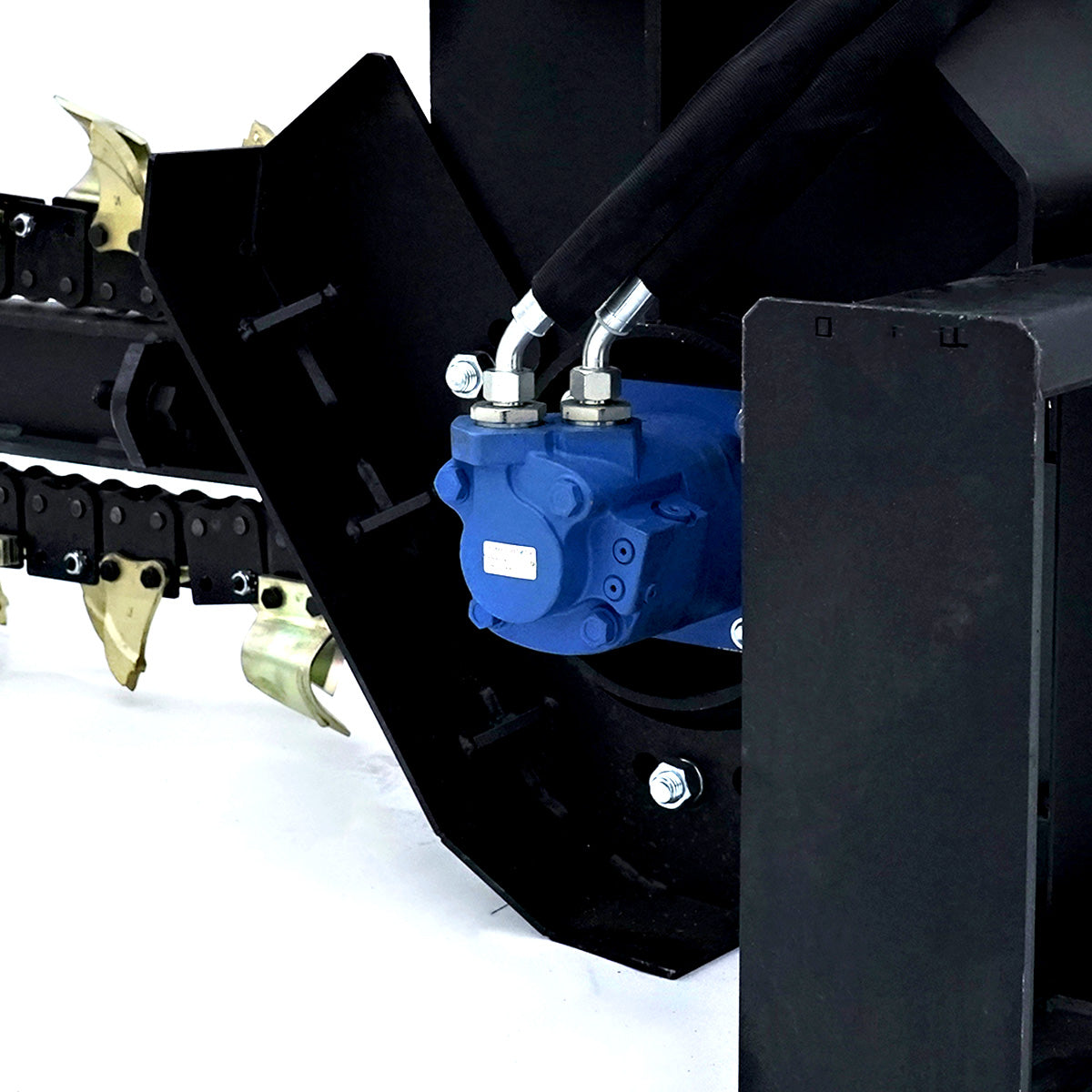

• Connector: Part#50801000077, Specification 1CB-22-08WDZ, both ends are threaded

• Connecting to oil pipe: M22x1.5mm

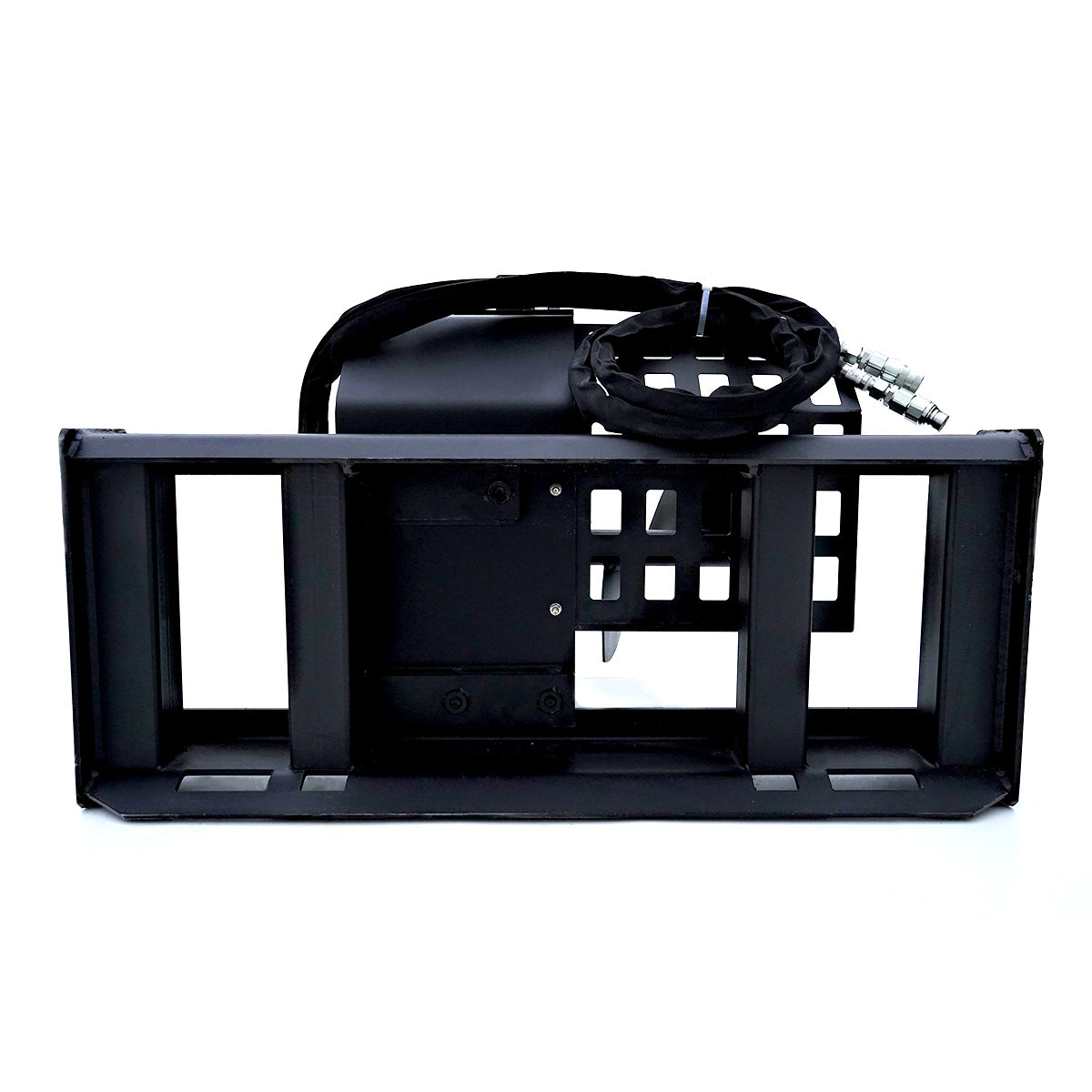

• Connecting to quick attach: G1/2"×14

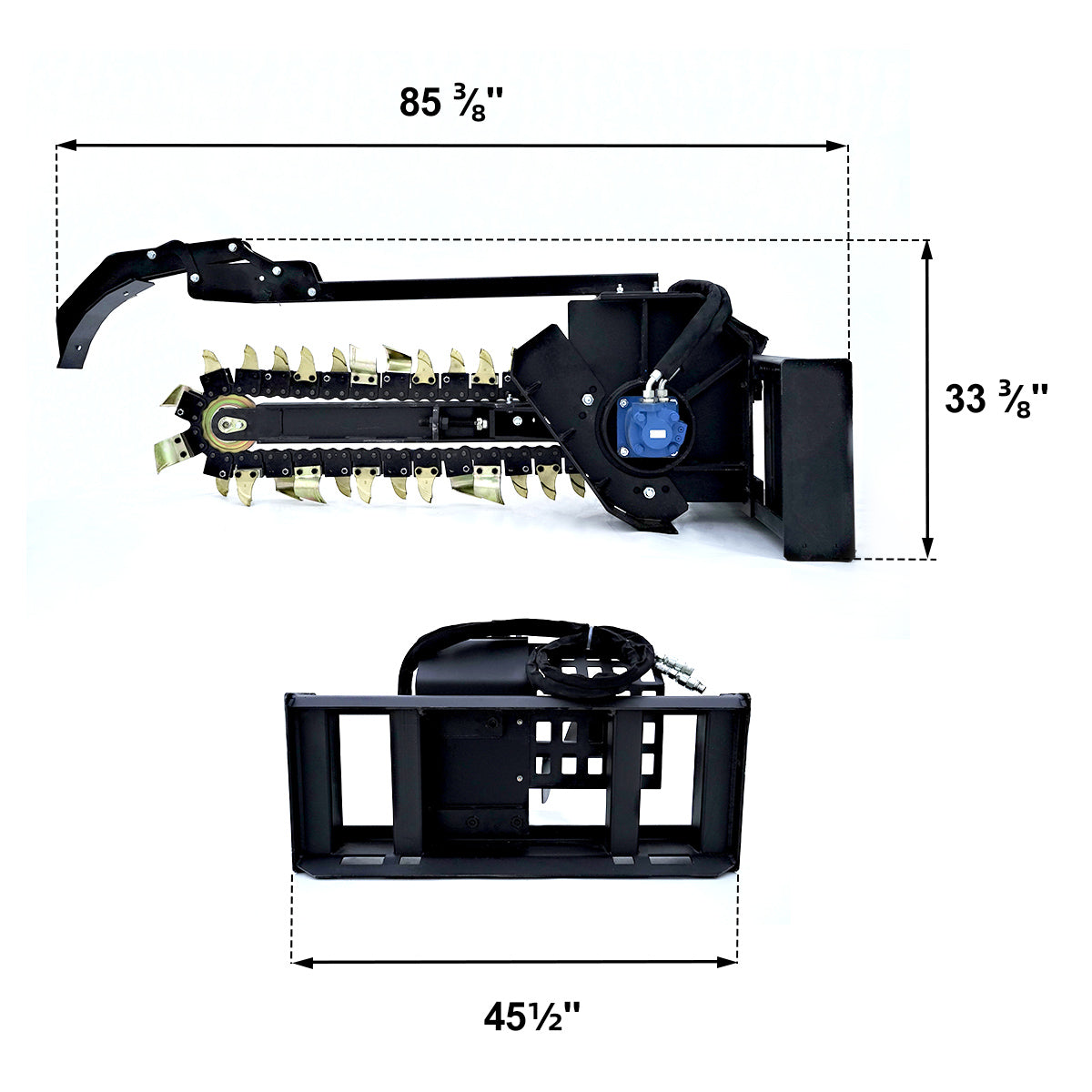

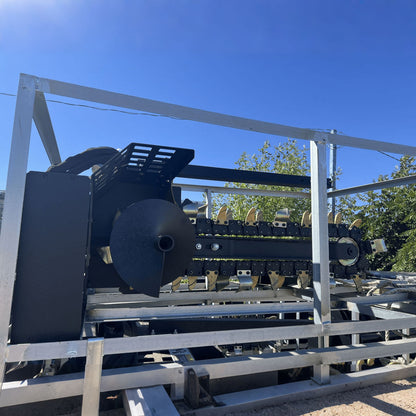

Package Size (Model 1000/200)

• LxWxH(inch): 96x49x35
• Weight(lb): 950
• A forklift or equivalent is required for unloading.
