Mango Power Solar Generator 240V Kit

Mango Power Solar Generator 240V Kit

Mango Power Solar Generator 240V Kit is a high-capacity portable power solution designed to provide dependable 240V split-phase power for home backup, RVs, off-grid living, and backup power planning. Built around the Mango Power E portable power station, the kit includes an mSocket Pro for 240V output and two 400W portable solar panels for clean, renewable charging.

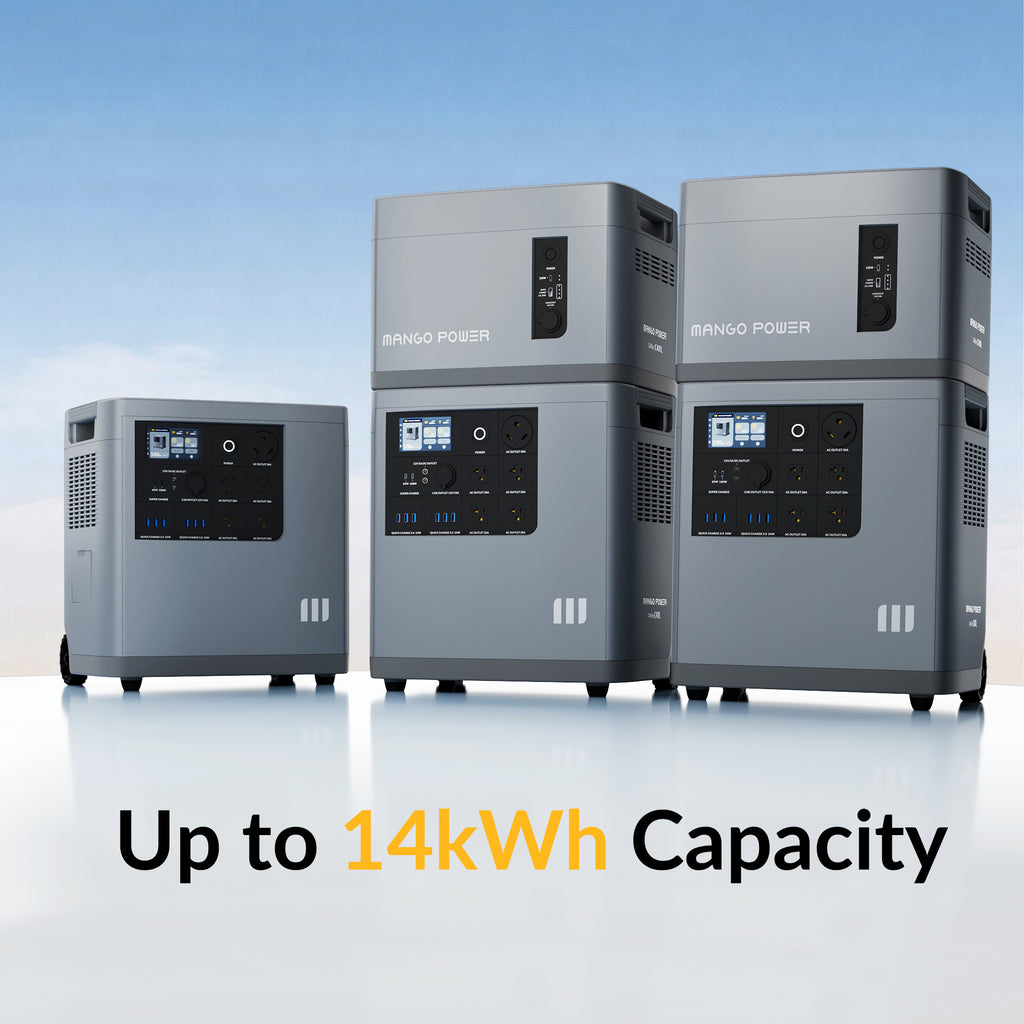

Delivering up to 6,000W AC output with an expandable capacity of 7kWh (up to 14kWh with an additional battery), it can power demanding appliances such as air conditioners, electric dryers, water pumps, refrigerators, and power tools.

The system features long-lasting CATL LiFePO₄ (LFP) battery cells rated for up to 6,000 charge cycles, supports fast AC charging in as little as 1.5 hours, and accepts up to 2,000W of solar input. With multiple AC, USB, DC, and RV outlets, smart app connectivity via Wi-Fi and Bluetooth, and a durable portable design with built-in wheels, the Mango Power Solar Generator 240V Kit delivers reliable, eco-friendly energy wherever you need it.

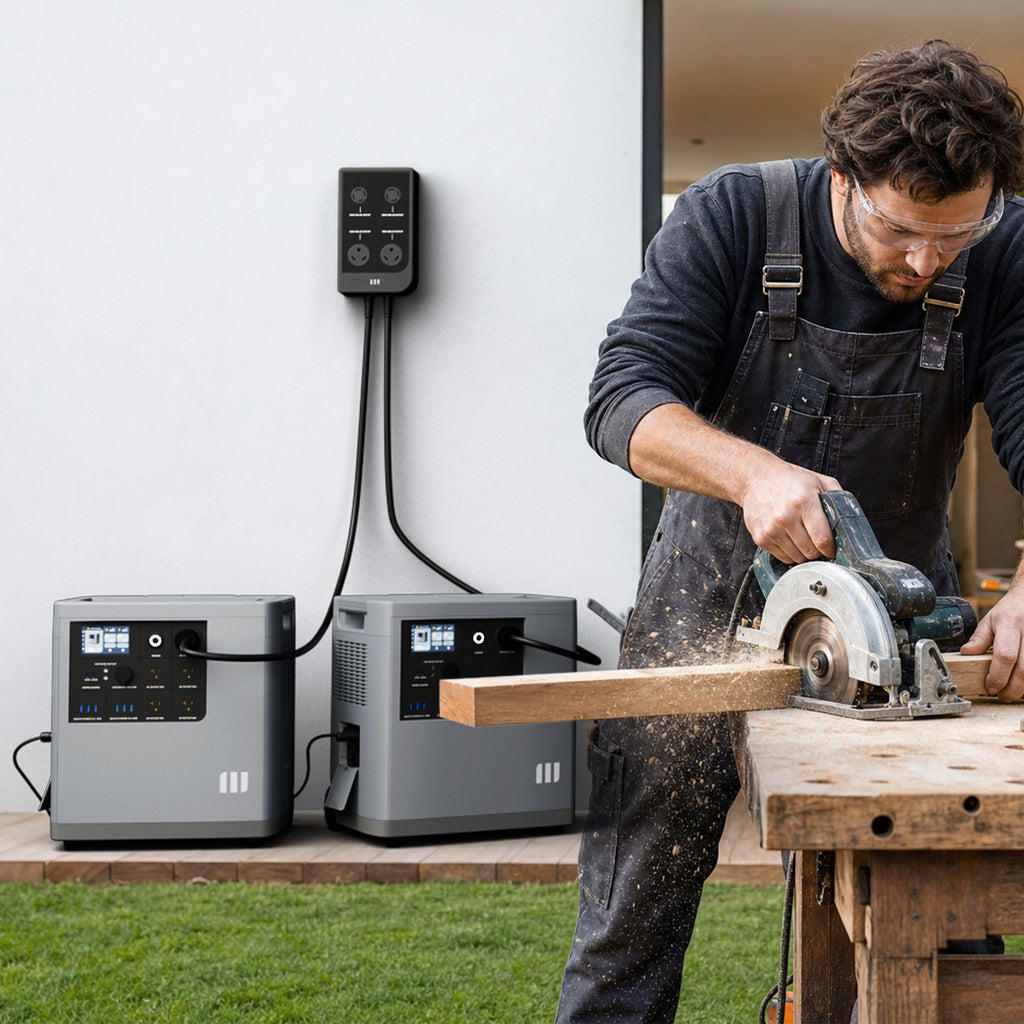

240V Split-Phase for Heavy-Duty Appliances

With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more.

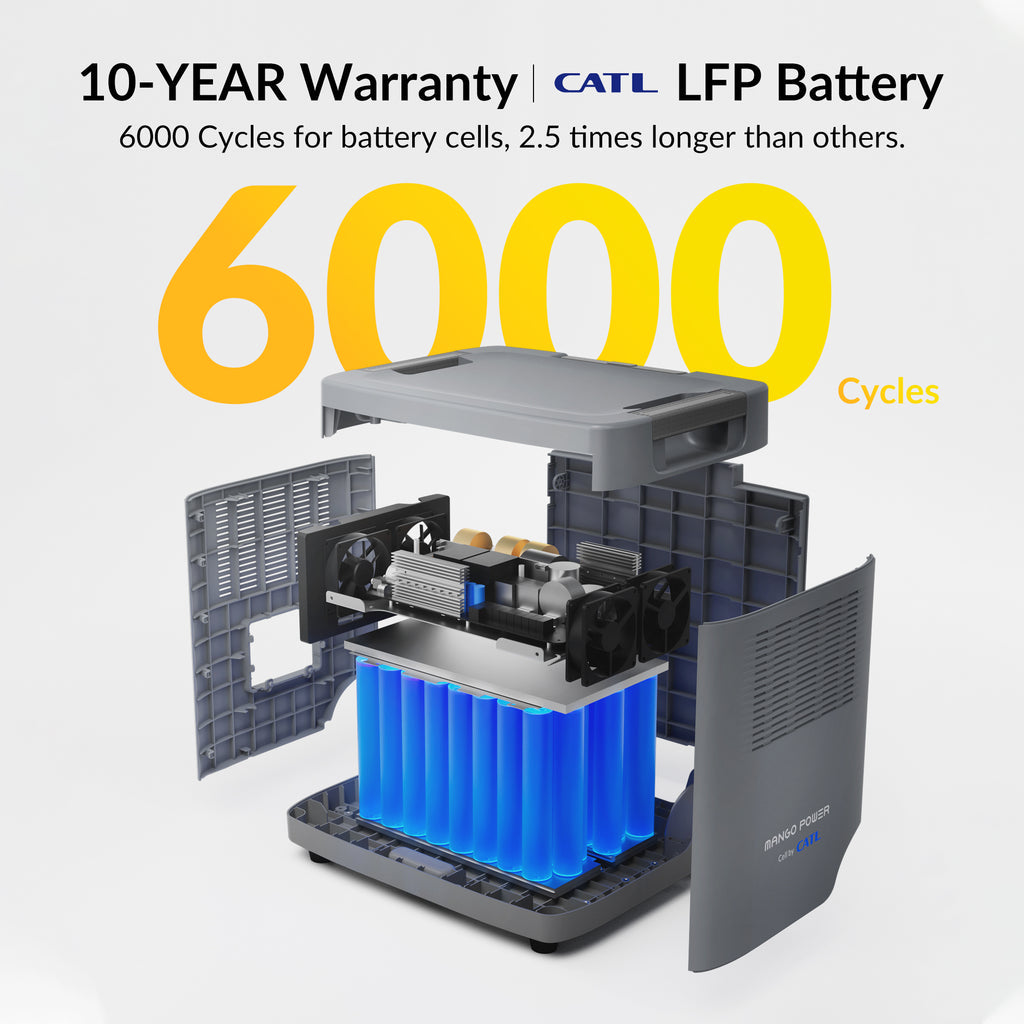

6000 Cycles LFP Cells

The Mango Power E uses the same ultra-durable LFP battery cells as the world's best EVs. These cells charge faster, last longer, and are more reliable than other traditional NCA/NCM battery cells.

Even with up to five years' continuous use, charging, discharging, and recharging constantly, the Power E's best-in-class battery cells will still perform as well as they did when brand new.

Serial and Parallel Connection

The solar input voltage range for Mango Power E is 60V-150V, with a maximum input power of 2000W. Please connect a minimum of two solar panels in series, and up to three solar panels are supported. Parallel cables are included in the accessories list.

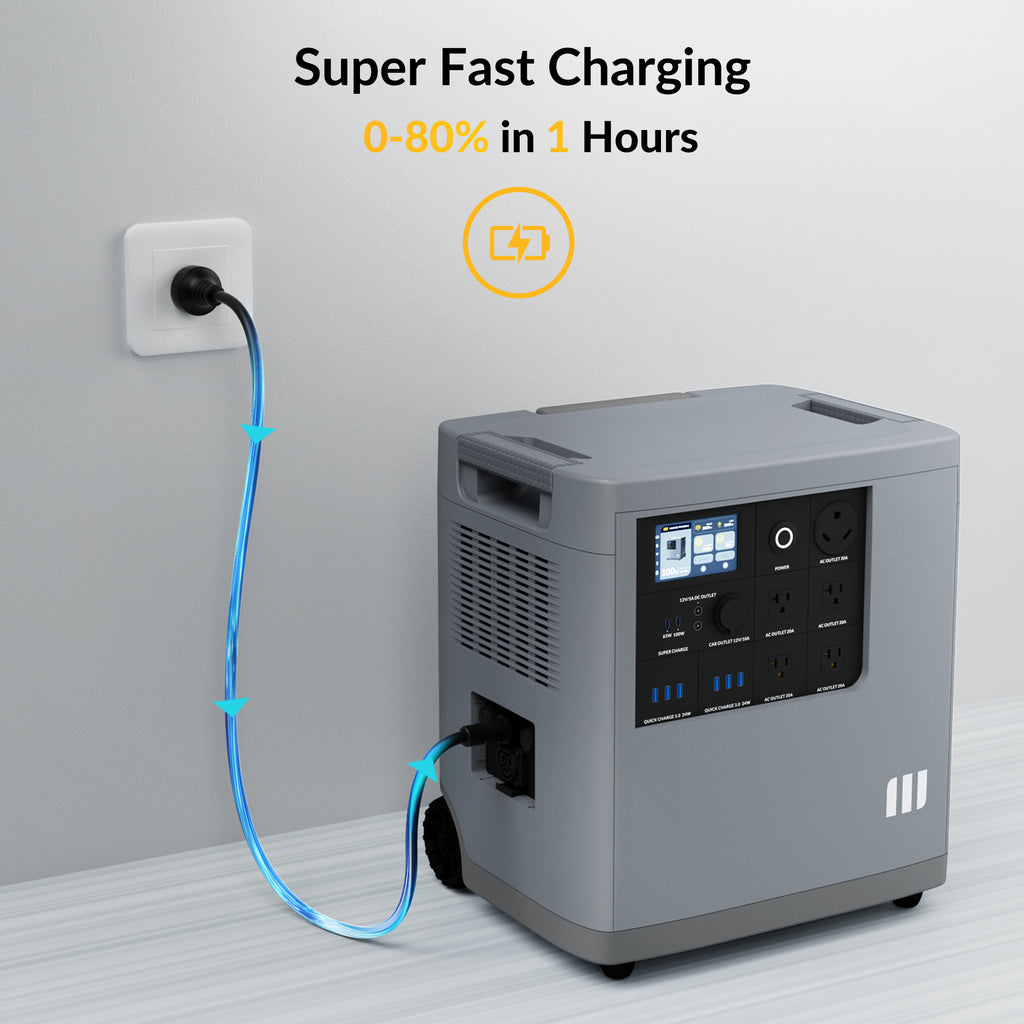

Fast Charging

With a 30A fast charging cable, at a blazing rate, going from 0-80% charged in just 60 minutes, full charge the Mango Power E needs just 1.5 hours.

Power Anywhere You Go

Built-in wheels make this portable power station easy to move, delivering reliable power anywhere from home use to outdoor adventures.

Better Environmental Adaption

CATL's batteries can withstand temperatures from -4°F to 113°F. This allows our power stations to operate smoothly even in extreme cold conditions.

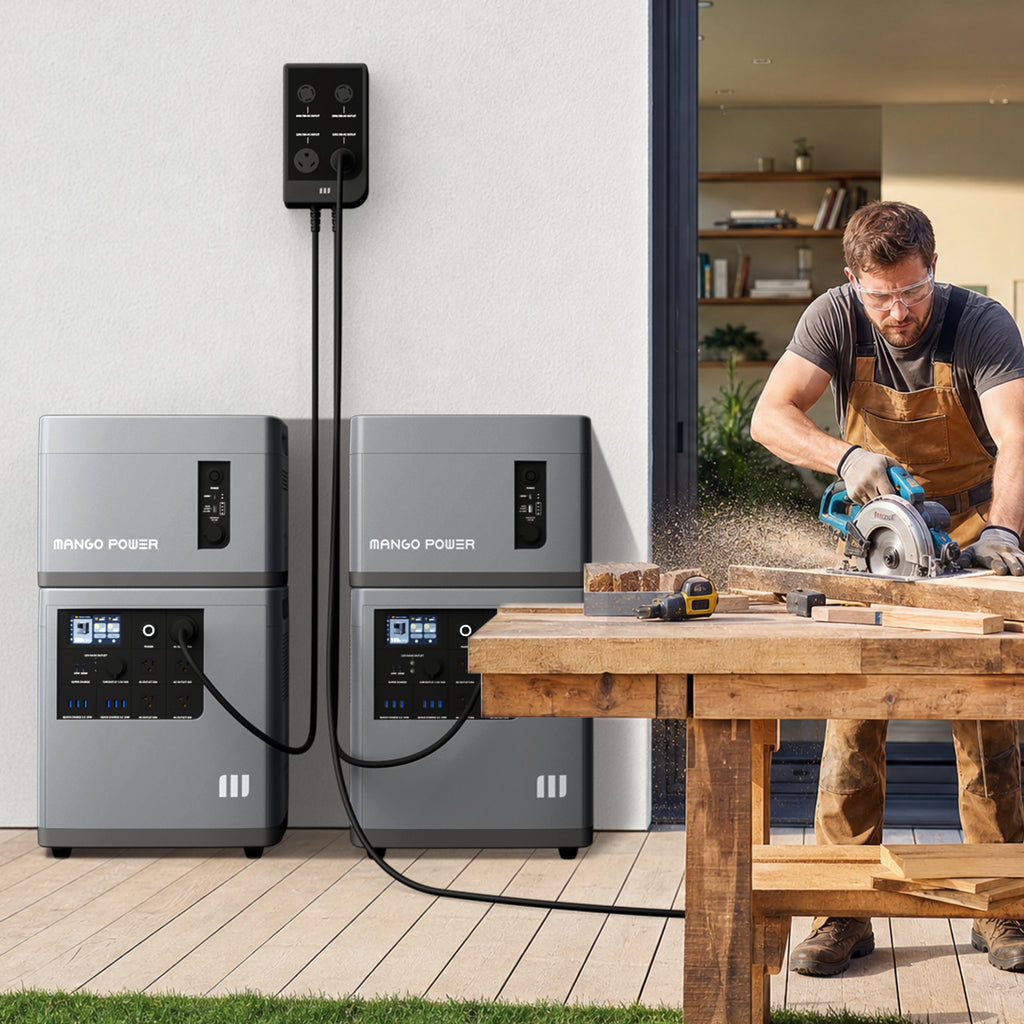

Power Your household appliances in the Event of A grid interruption

By integrating Mango Power’s ecosystem into your home circuit*, you guarantee that at the moment a grid interruption strikes, you enjoy power security and grid independence with a seamless, uninterrupted flow of electricity powering your lights, refrigerators, computers, and any other essential devices you have plugged in.

10-Year Service life

10-YEAR CATL Battery Cell Warranty, 6000 Cycles for battery cells, over 20 Years Lifespan, 2.5 times longer than others.

Specifications:

MANGO POWER E

Capacity: 3533Wh

Solar Charging Input: Max 2000W (60V-150V)

AC Output: 4 x 20A, 3000W total

EV Charging Spot: Adapter needed

USB-A Output: 6 x QC 3.0 24W

Generator: Support

USB-C Output: 1 x PD 65W + 1 x PD 100W

Battery Chemistry: LFP

Car Power Output: 12V / 10A

Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)

DC5521 Output: 2x 12V / 5A

Connection: Wi-Fi. Bluetooth

AC RV Port: 30A

Net Weight: 100.1 lbs / 45.4kg

AC Charging Input: Max 3000W

Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

mSocket Pro

Input: 120V / 240V AC

Maximum Current: 50A

Connection: Plug-and-play backup interface

Output Support: 120V/240V split phase

Transfer Method: Manual switching

Compatibility: Mango Power E systems

Installation: Less invasive than a hardwired transfer panel

400W SOLAR PANEL

Model: Solar Move

Max Power (Pmax): 400W

Open-Circuit Voltage (Voc): 40.8V

Short-Circuit Current (Isc): 12.36A

Max Load Voltage (Vmp): 32.4V

Max Load Current (Imp): 11.7A

Conversion efficiency: 23%

Cell Type: Monocrystalline silicon cell

Output Interface: MC4

Operating Temperature: -20°C～60°C(-4°F～140°F)

Net Weight: 7.8kg(17.2lbs)/±5 %

Unfolded Size: 2460*970mm/±5 96.85*38.19in/±5 %

Folded Size: 972 *620*65mm/±5 % 38.27*24.41*2.56in/±5 %

Warranty: 18 Months

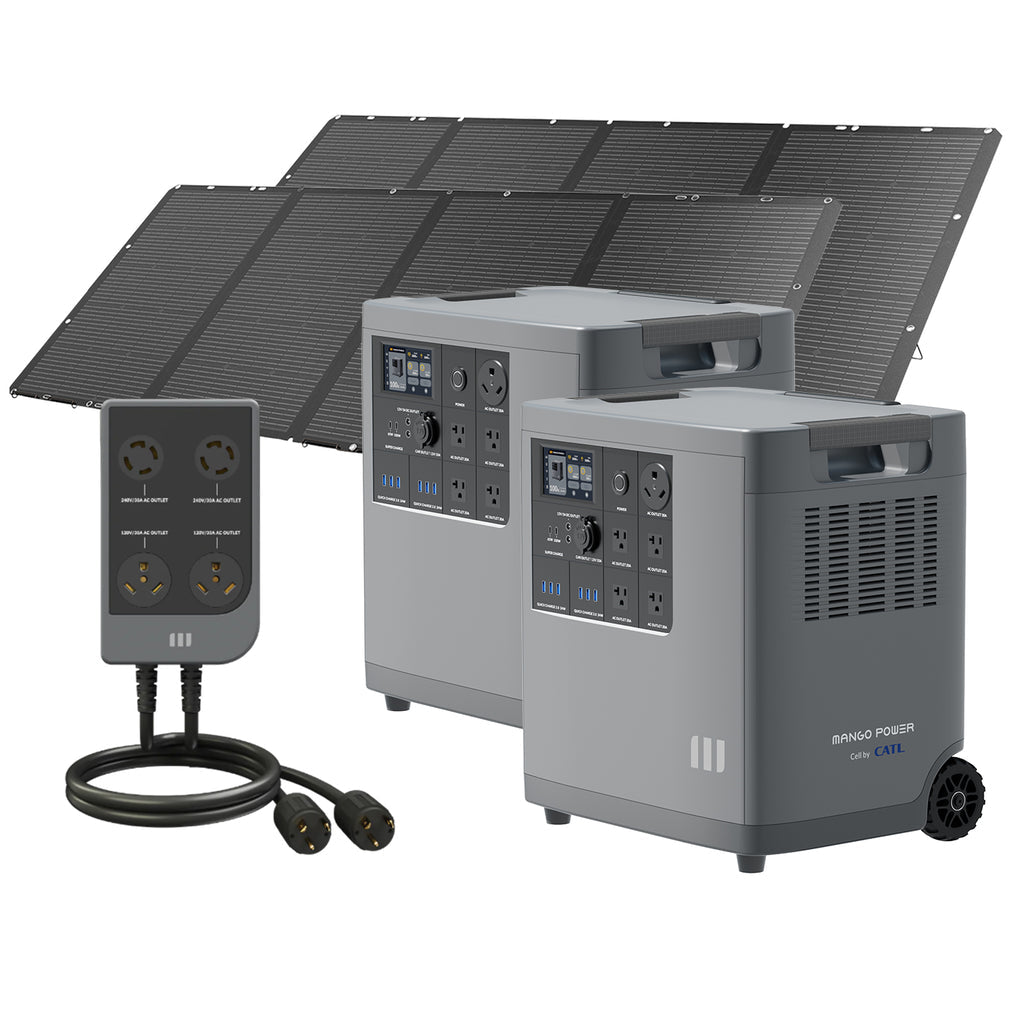

What's in the Box:

2 × Mango Power E

1 × mSocket Pro

2 × Mango Power Ultra-Light Portable Solar Panel 400W

Connection cables

AC charging cables

User manuals

Warranty cards
