Mango Power Solar Generator Kit Max

Mango Power Solar Generator Kit Max

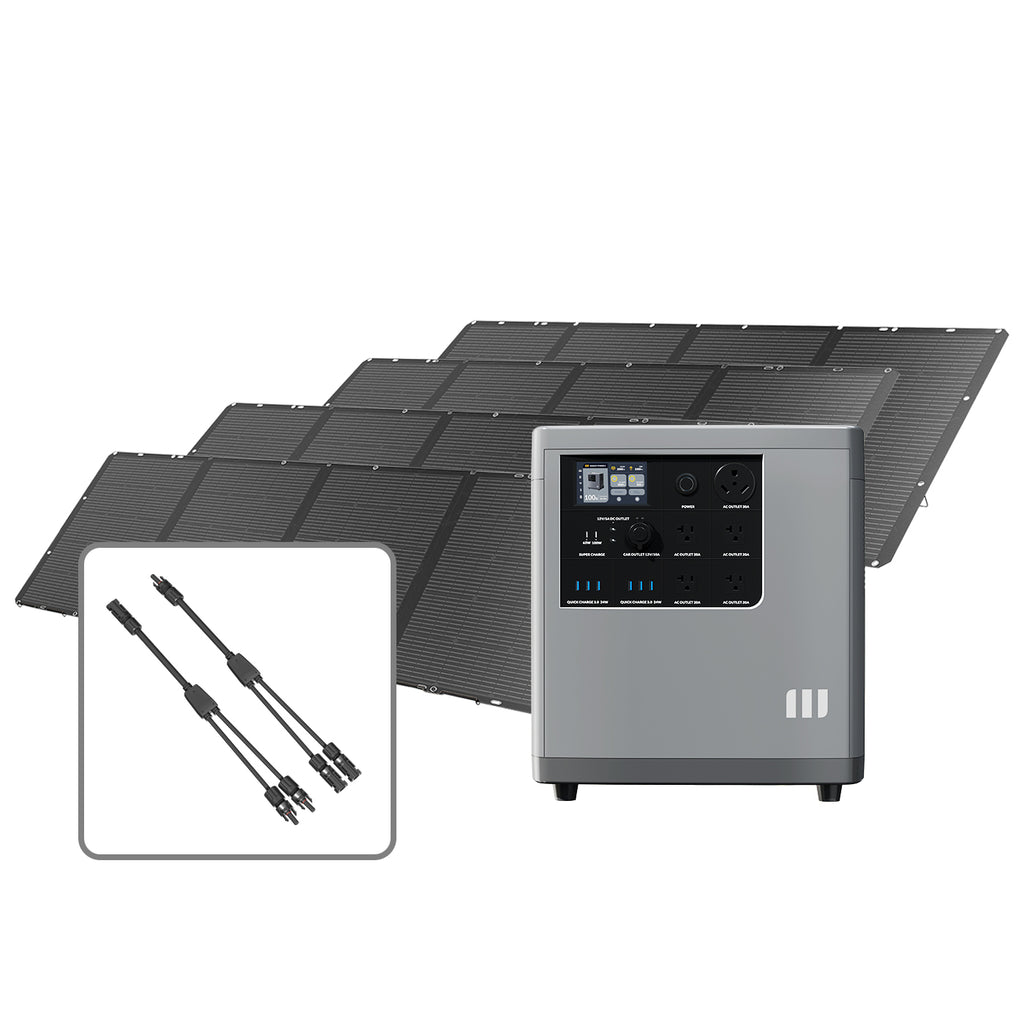

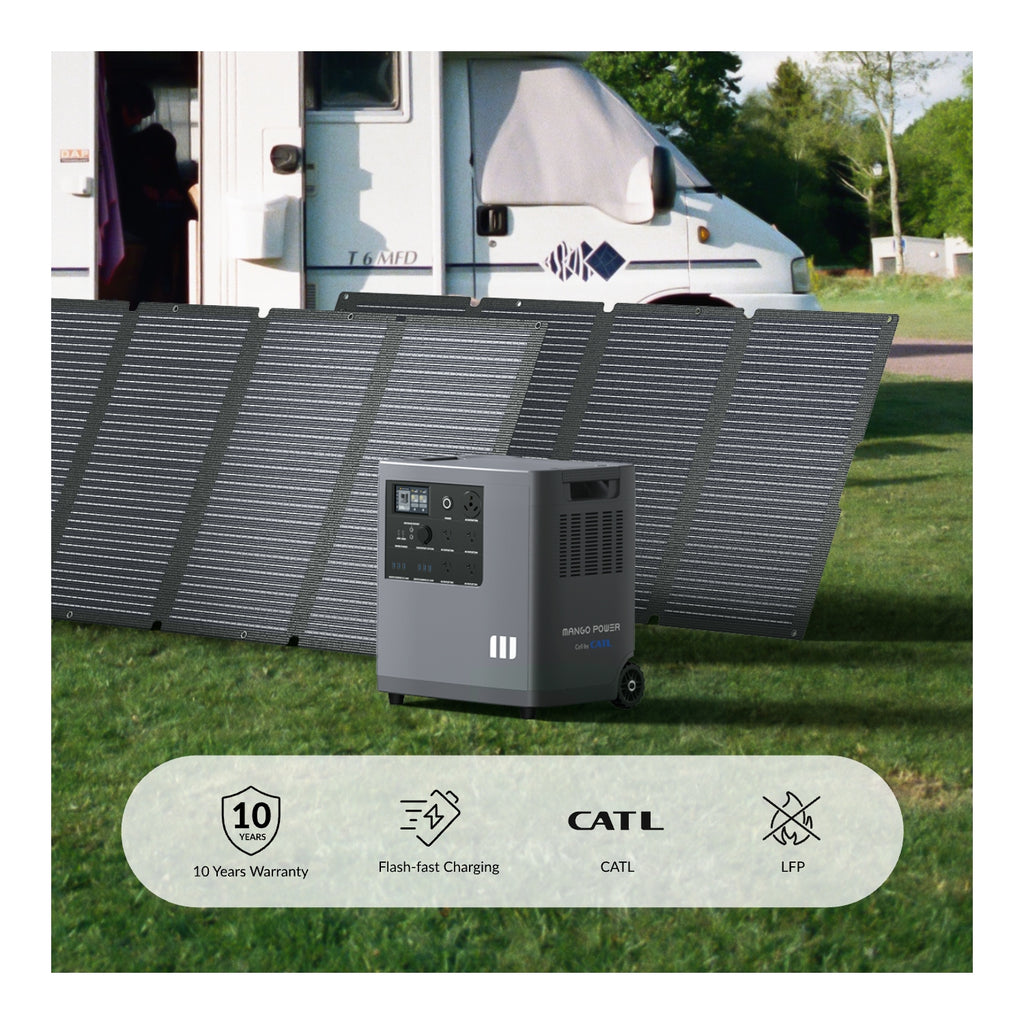

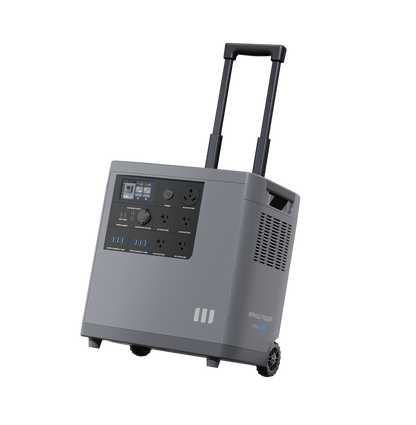

Mango Power Solar Generator Kit Max is a high-performance portable power solution designed for home backup, RV travel, off-grid living, and backup power needs. The kit includes one Mango Power E Portable Power Station, four 400W (40.8V) portable solar panels, and one parallel connection cable, delivering efficient renewable energy with a total of 1,600W solar charging capability.

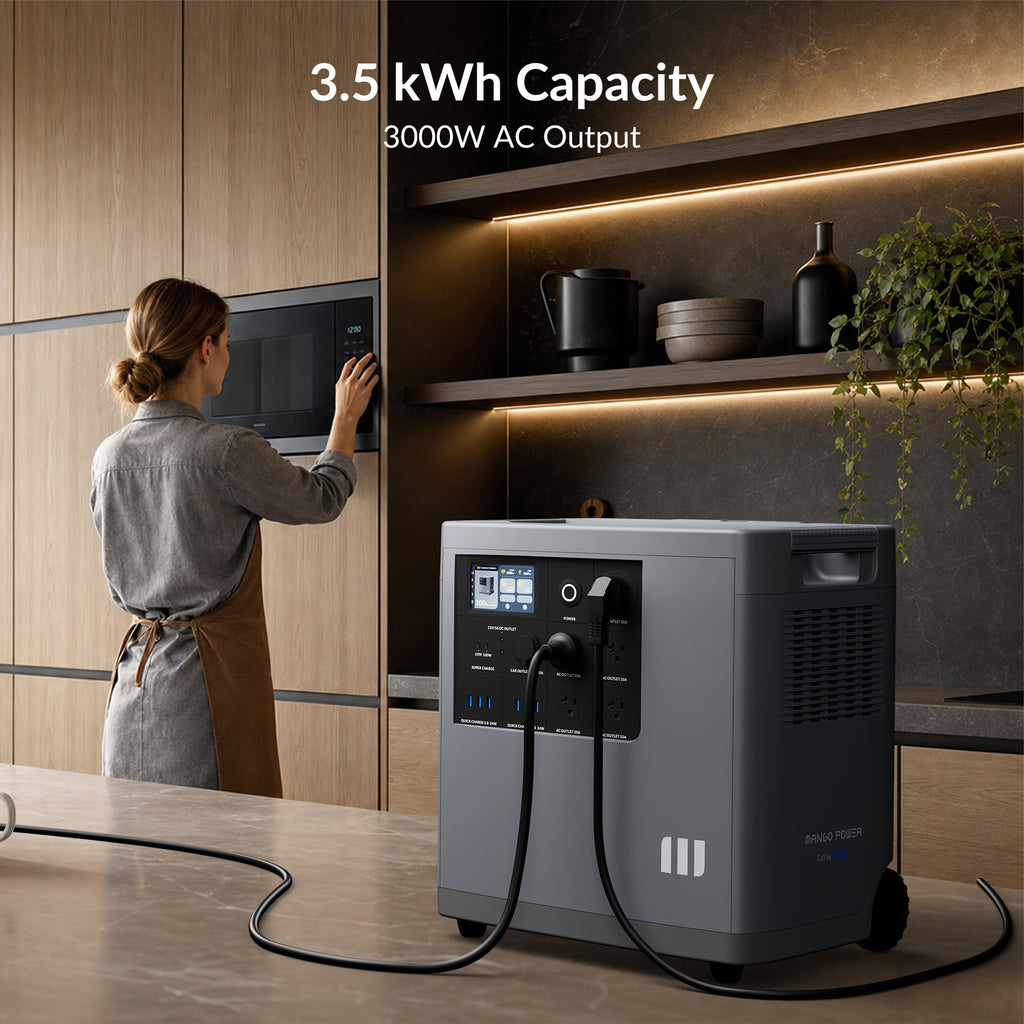

Equipped with a 3.5kWh LiFePO₄ battery and 3,000W pure sine wave AC output (6,000W surge) at 120V, it can power essential household appliances, power tools, electronics, and outdoor equipment with ease. The included parallel connection cable allows multiple solar panels to be connected for faster charging while remaining within the power station's 2,000W maximum solar input.

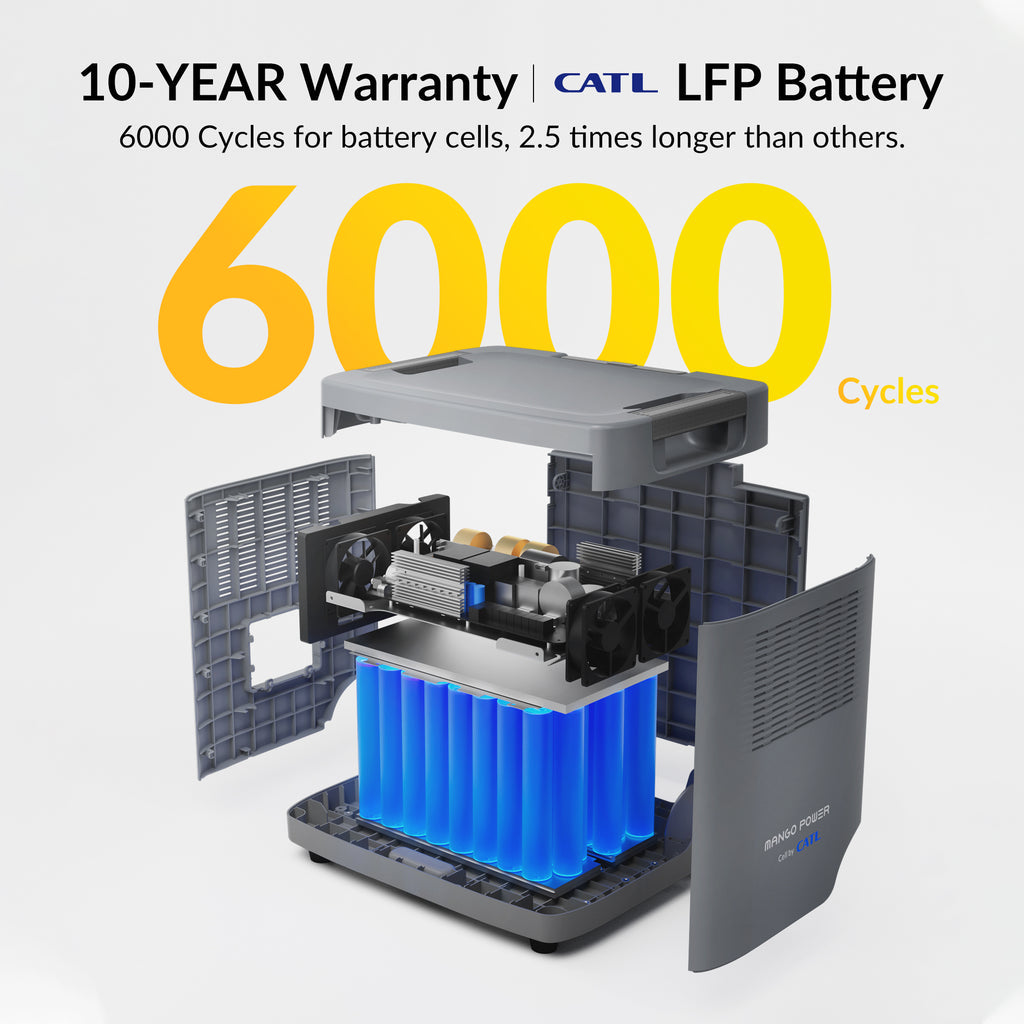

Built with premium CATL LiFePO₄ battery cells rated for up to 6,000 charge cycles, the system offers long-lasting reliability, fast AC charging, multiple AC, USB, DC, and RV outputs, smart Wi-Fi and Bluetooth app control, and expandable battery capacity. Clean, quiet, and emission-free, the Mango Power Solar Generator Kit Max provides dependable power wherever reliable electricity is needed.

Specifications:

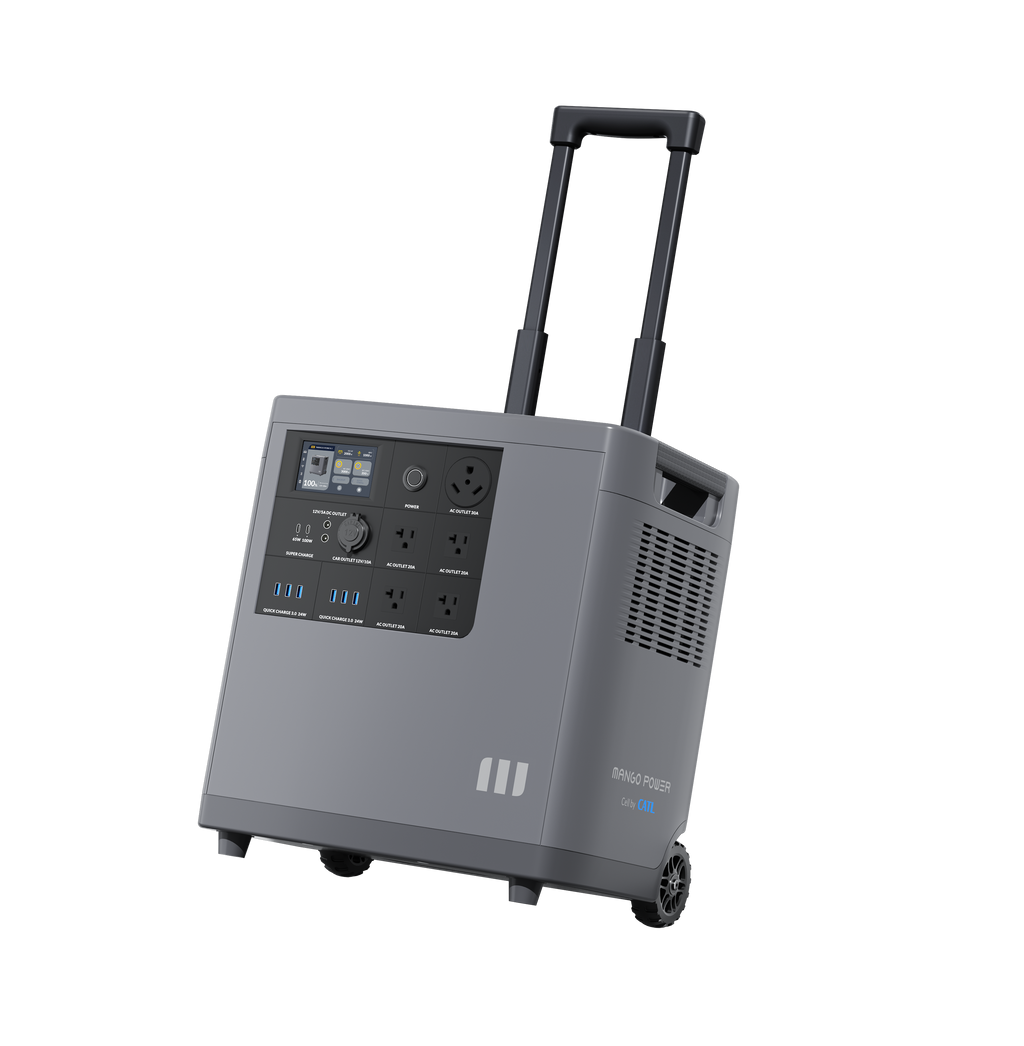

MANGO POWER E

Capacity: 3533Wh

Solar Charging Input: Max 2000W (60V-150V)

AC Output: 4 x 20A, 3000W total

EV Charging Spot: Adapter needed

USB-A Output: 6 x QC 3.0 24W

Generator: Support

USB-C Output: 1 x PD 65W + 1 x PD 100W

Battery Chemistry: LFP

Car Power Output: 12V / 10A

Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)

DC5521 Output: 2x 12V / 5A

Connection: Wi-Fi. Bluetooth

AC RV Port: 30A

Net Weight: 100.1 lbs / 45.4kg

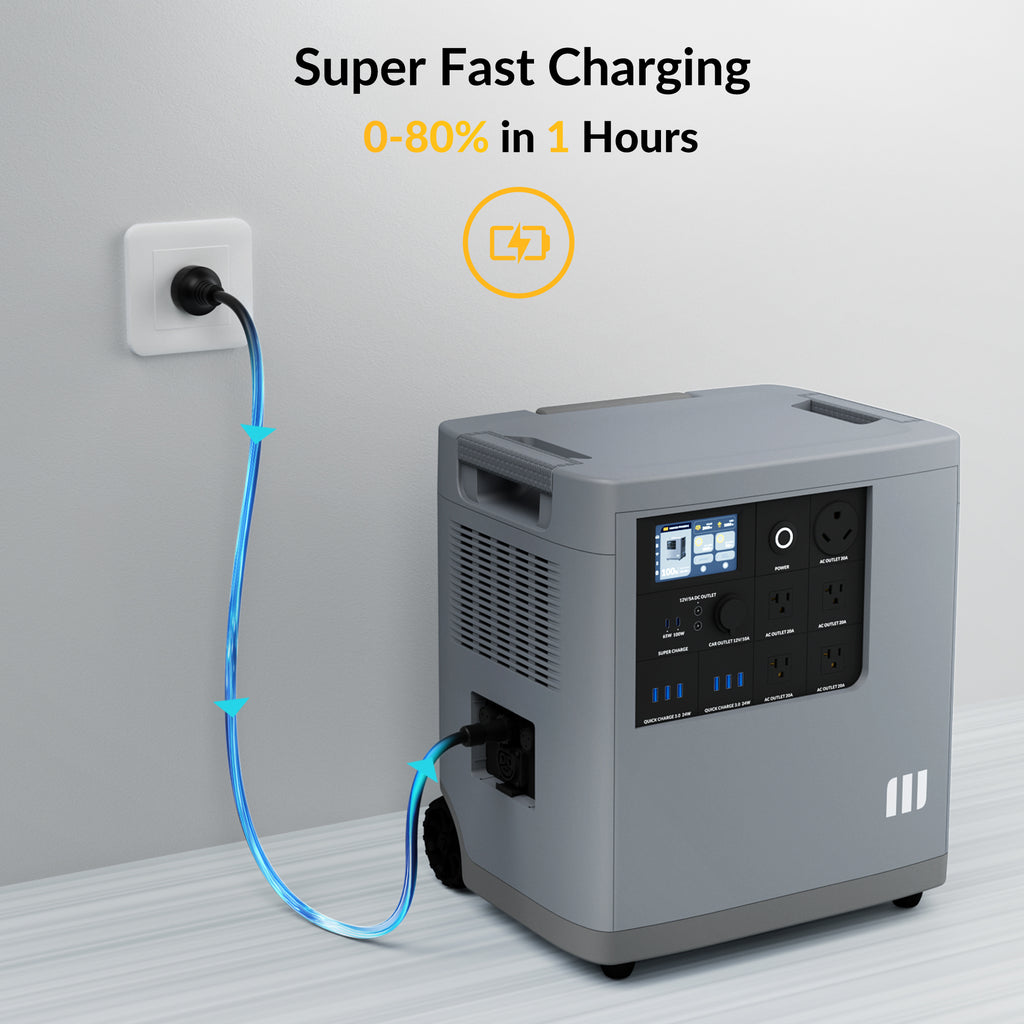

AC Charging Input: Max 3000W

Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

SOLAR PANEL

Model: Solar Move

Max Power (Pmax): 400W

Open-Circuit Voltage (Voc): 40.8V

Short-Circuit Current (Isc): 12.36A

Max Load Voltage (Vmp): 32.4V

Max Load Current (Imp): 11.7A

Conversion efficiency: 23%

Cell Type: Monocrystalline silicon cell

Output Interface: MC4

Operating Temperature: -20°C～60°C(-4°F～140°F)

Net Weight: 7.8kg(17.2lbs)/±5 %

Unfolded Size: 2460*970mm/±5 96.85*38.19in/±5 %

Folded Size: 972 *620*65mm/±5 % 38.27*24.41*2.56in/±5 %

Warranty: 18 Months

PARALLEL CONNECTION CABLE

Connector Type: MC4 Male × 2 / MC4 Female × 2 (Parallel Configuration)

Cable Configuration: 2-to-1 Parallel Connection

Maximum System Voltage: 1,000V DC

Rated Current: Up to 30A

Conductor Material: Tinned Copper

Cable Insulation: UV-resistant, weather-resistant PVC/XLPO

Waterproof Rating: IP67

Operating Temperature: -40°C to 90°C (-40°F to 194°F)

What's in the Box:

1 × Mango Power E

4 × Mango Power Ultra-Light Portable Solar Panel 400W

1 x Parallel Connection Cable

AC charging cables

User manuals

Warranty cards
